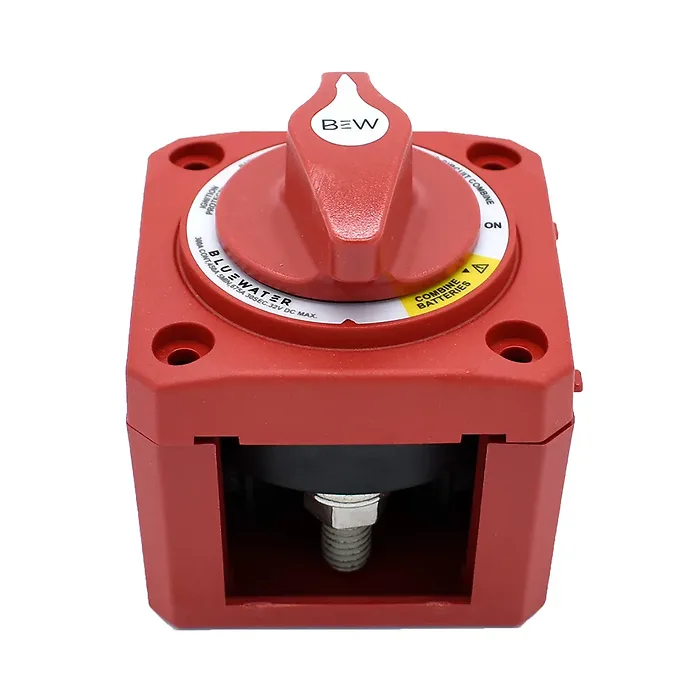

Red Surface Mount Battery Switch

This battery switch is designed for efficient power management, combining dual circuits with an emergency parallel function. In the case of a starting battery failure, it quickly enables both circuits to provide backup power, ensuring you're never left stranded.

Key Features:

• Secure isolation during normal operation
• Emergency parallel mode for reliable backup starting power
• Perfect for marine and RV electrical systems

Durable Build:

• Constructed with marine-grade metals and reinforced polycarbonate
• Ignition protected for safety on gasoline-powered boats
• Engineered to withstand harsh environments and vibrations

Connection Performance:

• Features 3/8"-16 tin-plated copper studs for superior conductivity
• Compatible with both 3/8" and M10 ring terminals
• 7/8" stud length easily accommodates various cable terminals

User-Centric Design:

• Tactile knob texture allows for easy switch position identification
• Includes international ON/OFF legends and ICON label set
• Flexible mounting options: surface, front panel, or rear panel

This battery switch offers reliable performance and peace of mind for both marine and RV applications, combining isolation, emergency backup, and rugged design.

• 300 Amps DC continuous rating
• 450 Amps DC intermittent rating (5 min)
• 675 Amps DC cranking rating (30 sec)
• Max voltage of 32VDC
• Compatible with cable size 4/0 AWG
