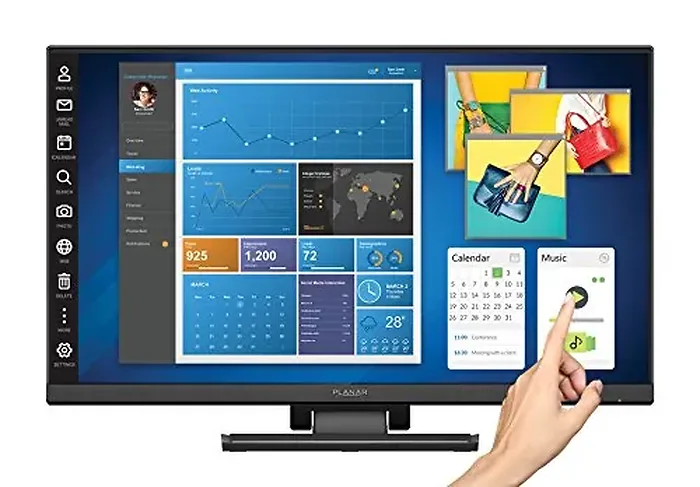

The Planar® Helium? PCT2435 is a 24" Full HD resolution (1920x1080) LCD touch screen monitor with 10-point simultaneous multi-touch capability, integrated speakers, USB 3.0 hub and dual-hinge desk stand.
Product Name
PCT2435 Planar Part Number
997-9363-00 Viewable Size
23.8" diagonal (20.75" horizontal x 11.67" vertical) Touchscreen Type
Multi-Touch Projected Capacitive (up to 10 touch points) Number of Touch Points
10 Touchscreen Interface
USB Contrast Ratio (typ)
1000:1 Viewing Angle (typ)
178^o H,V Response Time (typ)
14 ms Brightness (w/touchscreen)
212 cd/m² Brightness (w/o touchscreen)
250 cd/m² Display Type
IPS Edge-Lit LED LCD Display Resolution
1920 x 1080, full HD Aspect Ratio
16:9 Tilt Range
-5^o to +90^o Palette
16.7 million colors Pixel Pitch
0.2745 mm Refresh Rate
56 to 75 Hz (60 Hz recommended) Panel Depth
1.9" (46.9 mm) Video Inputs
Analog, HDMI
