Veratron 500mm Deep-Pipe Level Sensor - 240 to 33 OHM

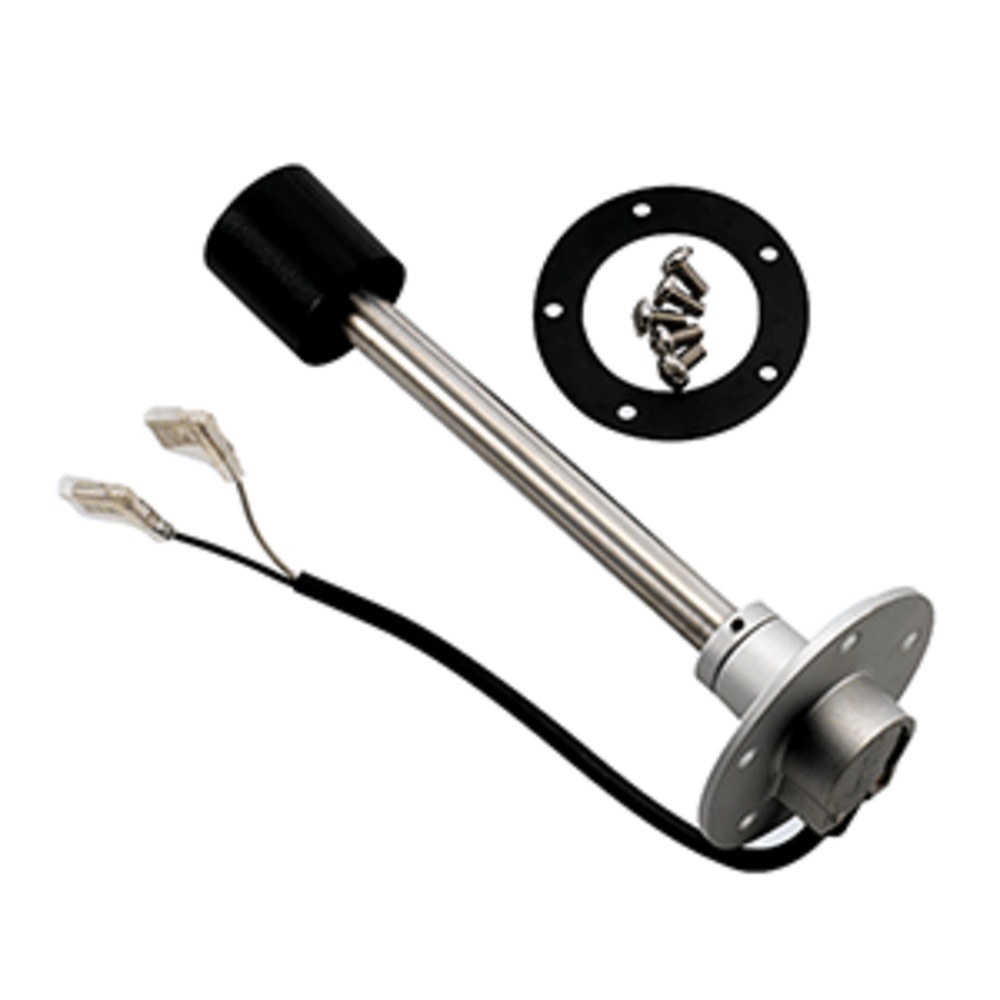

The Veratron Deep-Pipe Level Sensor is designed for reliable performance in monitoring liquid levels within various tank applications, particularly fuel tanks. This device features a robust 38 mm diameter stainless steel tube housing a float that accurately measures liquid levels. Equipped with small holes at both the top and bottom, the design effectively mitigates the effects of sloshing, ensuring stable float positioning under varying sea conditions.

The sensor is available in numerous lengths, starting at 150 mm and extending to 1200 mm, allowing for tailored installation. Ensure that the selected length maintains a minimum clearance of 4 mm from the tank base once installed.

Key Attributes:

• Durable tubular sensor construction in stainless steel
• Compatible with a range of fluids, including fuels (oil, petroleum, diesel, gasoline) and water
• Length: 500 mm

Technical Specifications:

• TE Superseal Connector, 2-Pole IP67 rated
• Operating Temperature: -25°C to 65°C (-13°F to 149°F)
• Operating Voltage: 6 to 24 VDC
• Includes a compensation chamber
• Flange: 5-Hole SAE Flange, 54mm PA66 GF30
• Wiring harness included, 200 mm length
• Resistance Signal Range: 240 to 33 OHM
• IP67 protection rating
• Analog communication capability

Included in the package:

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*This product is sold individually.

Please note: This product cannot be returned to the original point of purchase. For any issues or concerns, please reach out to the manufacturer directly.

• Stainless steel tubular structure
• Suitable for various liquids including fuel and water
• Compact size: 500 mm length
• IP67 rated for water and dust resistance
• Wide operating temperature range for versatile applications
• Easy to install with included kit
• Two-pole TE Superseal connector for secure connectivity
