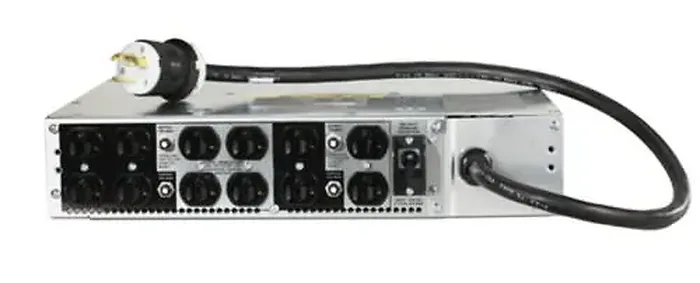

Transformer (rack-mountable) - AC 208 V - 2U - for P/N: SUA5000RMI5U

Output:
Nominal Output Voltage: 120V
Maximum Total Current Draw Per 24A Phase
Output Connections: (12) NEMA 5-20R
Always on Outlets: 12 Input
Nominal Input Voltage: 208V
Input Connectors: NEMA L6-30P
Number of Power Cords: 1
Acceptable Input Voltage: 208VAC
Maximum Line Current Per Phase: 24A
Maximum Input Current Per Phase: 30A
Load Capacity: 5000 VA Color:
Black Environmental:
Operating Environment: 0 - 40 C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0 - 3000 Meters
Storage Temperature: -15 - 45 C
Storage Relative: Humidity: 0 - 95%
Storage Elevation: 0 - 15000 Meters Conformance:
CSA
OSHPD
UL 1778 RoHS:
Compliant REACH:
REACH Contains No SVHCs Item Dimension (L"xW"xH")
10 x 24.50 x 37.50

Weight
110.00 lb

Warranty Information
2 Years Repair or Replace
