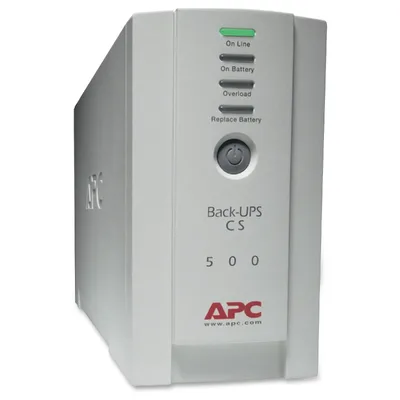

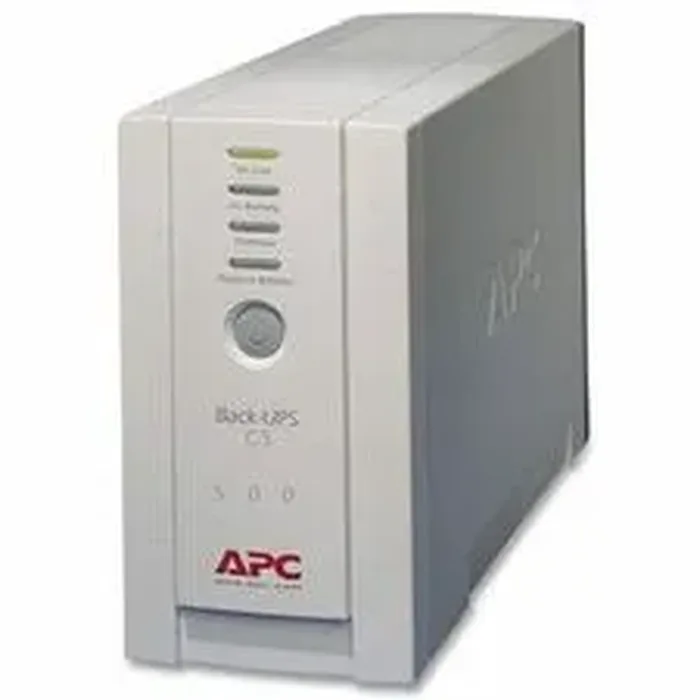

APC by Schneider Electric BK500 120V Backup System
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:BK500
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Back-UPS
Product Series:CS
Product Name:BK500 120V Backup System
Marketing Information:Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.
Packaged Quantity:1 Each
Product Type:Standby UPS
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:
- 3 x NEMA 5-15R
- 3 x NEMA 5-15R Surge
Number of Battery & Surge Outlets:6
Dataline Protection:RJ-11
Cord Length:6 ft
Power Description
Load Capacity (VA):500 VA
Load Capacity (Watt):300 W
Input Voltage:120 V
Input Current:10 A
Output Voltage:120 V AC
Power Consumption:300 W
Waveform Type:Stepped Approximated Sine Wave
Surge Energy Rating:480 J
Management
Alarm:
- On Battery
- Low Battery
- Overload
Controls/Indicators
Status Indicators:LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators
Interfaces/Ports
Serial Port:Yes
USB:Yes
Battery Information
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):3 Minute
Backup/Run Time (Half Load):15 Minute
Typical Battery Recharge Time:8 Hour
Environmental Conditions
Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):45 dB(A)
Thermal Dissipation:7.03 W
Physical Characteristics
Color Family:Beige
Product Color:Beige
Height:6.5"
Width:3.6"
Depth:11.2"
Form Factor:Tower
Mounting Location:Front
Weight (Approximate):13.82 lb
Miscellaneous
For Country/Region:United States
Package Contents:
BK500 120V Backup SystemCD with softwareCord management strapsUSB cableUser manualAdditional Information:
- Additional Surge Protected Outlets
- Cord Management
- Software
- USB compatible
Certifications & Standards:cUL Listed|California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|Industry Canada
Recycled:No
Assembly Required:No
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/filesrp_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK500_ROHS_DECLARATION&p_FileName=BK500KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=exportPdfReach&pid=760910&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspxraction=export&pid=760910&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/filesrp_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN
End of Life Manual Availability:https://download.schneider-electric.com/filesrp_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN
California Proposition 65 Warning:WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:3 Year
Additional Warranty Information:3 years repair or replace
Directly Connected Equipment Guarantee:
