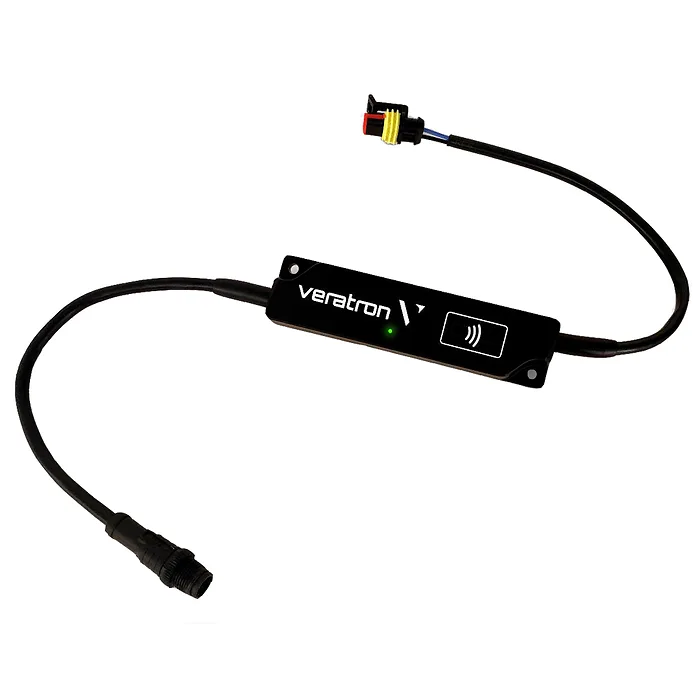

LinkUp NMEA 2000 Gateway for Analog Sensors

The Veratron LinkUp gateway is designed to seamlessly convert your vessel and engine data into NMEA 2000 format. This robust gateway offers a straightforward installation that replaces existing wiring while providing power to both the LinkUp device and sensors from the NMEA 2000 backbone, adhering to the necessary certification standards.

Using the LinkUp Configuration App, available for both Android and iOS, setting up the device is an effortless process. The device is equipped with a passive NFC antenna that allows for quick and wireless configuration of sensor parameters directly from your mobile device by simply tapping it against the LinkUp device for instant data transfer.

Key Features:

• User-friendly configuration via wireless interface and smartphone app
• Sensor cable length: 25 cm
• NMEA 2000 cable length: 25 cm
• Tap to download configuration parameters
• Compatible mobile app available for Android and iOS
• No additional power required for programming
• No certification needed for operation
• Bi-directional communication and data management capabilities

Supported Sensors:

• Fuel Level
• Oil/Boost Pressure
• Fresh/Waste Water Level
• Oil/Gear Oil/Coolant Temperature
• Trim Tabs
• Rudder Angle

Technical Specifications:

• Standard M12 NMEA 2000 plug
• LED notification indicator
• Operating voltage: 6 - 16.5V
• Nominal voltage: 12 V (from NMEA 2000 network)
• IPX7 rated waterproof
• Sensor plug type: Superseal Female 2 Pin
• Counterpart sensor plug type: Superseal Male 2 Pin

*Sold individually

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly if you have any issues or concerns.

• User-friendly configuration via wireless interface
• Easy app integration for Android and iOS
• Tap-to-download parameters for quick setup
• No power required to program
• Bi-directional communication capabilities
• Compatible with multiple sensor types
