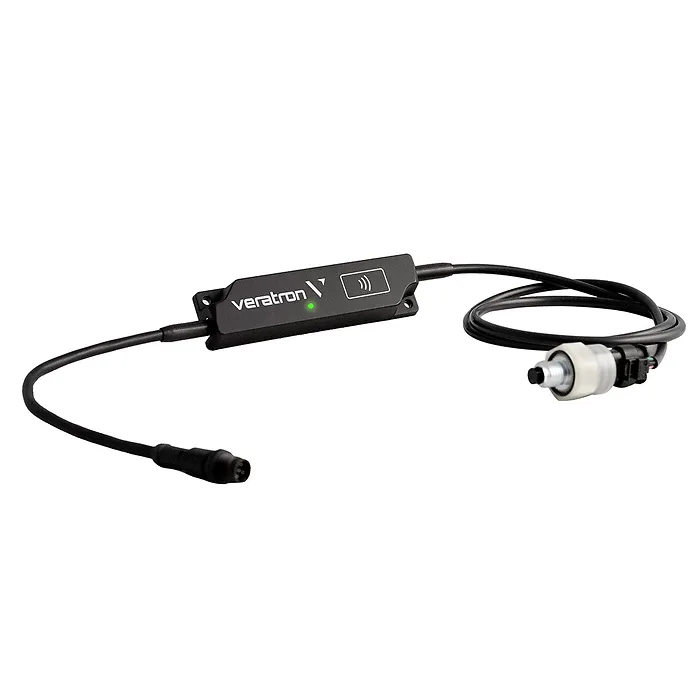

LinkUp Intelligent Oil Temperature & Pressure Sensor

This advanced sensor measures engine oil temperature and pressure simultaneously, relaying data to the LinkUp device which converts it to the NMEA 2000® protocol for seamless integration.

Key Features:

• Dual functionality with a single electronic sensor for oil temperature and pressure
• Designed for durability and reliability, inspired by professional automotive standards
• Sensor control via ASIC for enhanced performance
• PWM (Pulse Width Modulation) output enables efficient data transmission

Specifications:

• M12 mounting thread for easy installation
• IP 69/K protection class for maximum durability
• 5V power supply provided by LinkUp unit
• Temperature accuracy of ± 1°K within the range of 135 °C to 160 °C
• Pressure accuracy of ± 0.2 bar (range: 0.5 to 3 bar) and ± 0.1 bar below, ± 0.3 bar above
• Operating temperature range: -40 °C to + 160 °C
• Pressure range: 0.5 to 10.5 bar
• 1-meter cable length for flexible installation
