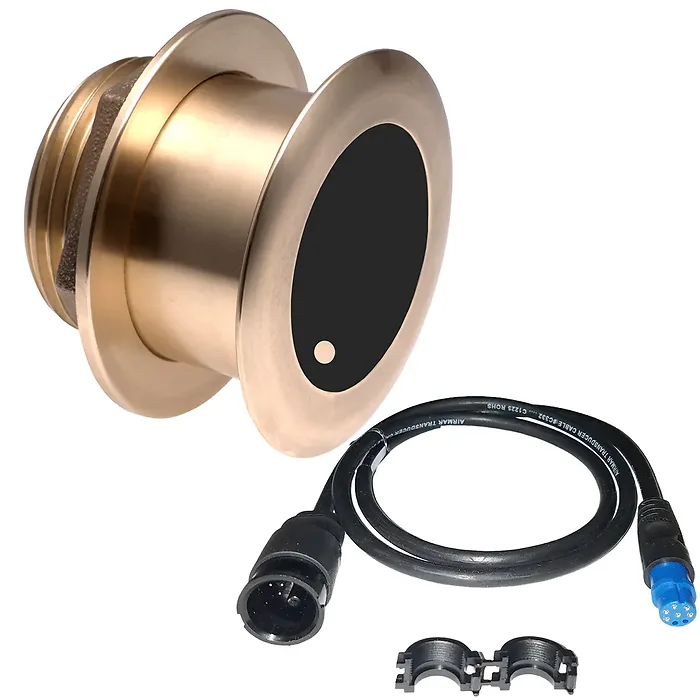

B175HW Bronze Thru-Hull 1kW for Garmin with 8-Pin Connector

Enhance your fishing experience with the Airmar B175HW wide-beam, high-frequency, Chirp-ready transducer. Operating between 150 to 250 kHz, it features a fixed 25° beam, ensuring superior shallow-water performance, exceptional bottom detail, and precise fish-target separation. Its unique wide beam provides double the coverage for detecting fish within the upper-water column compared to conventional high-frequency, narrow-beam transducers. Ideal for both inshore and offshore fishing, it operates effectively down to depths of 152 m (500').

The Tilted Element™ technology allows for optimal installation by correcting for the hull's deadrise, positioning the ceramic element for maximum echo returns. Enjoy enhanced display resolution even at speed with its low-profile thru-hull design.

• Compatible with Garmin 8-Pin Mix & Match Cable for Chirp Transducers
• Depth and rapid-response water-temperature sensing
• Power rating of 1 kW
• Operates at high frequencies: 150 to 250 kHz
• Constant 25° beamwidth
• Maximum operational depth of 152 m (500')
• Offers 100 kHz of total bandwidth from a single transducer
• Covers popular fishing frequency of 200 kHz plus wider ranges
• Low-profile design allows good display resolution at speed when correctly installed
• Recommended for planing, stepped, or displacement hull types
• Bronze housing designed for fiberglass or wood hulls
• Available alternatives in stainless steel housing (SS175HW) and various mount designs
• Features patented Xducer ID® technology
