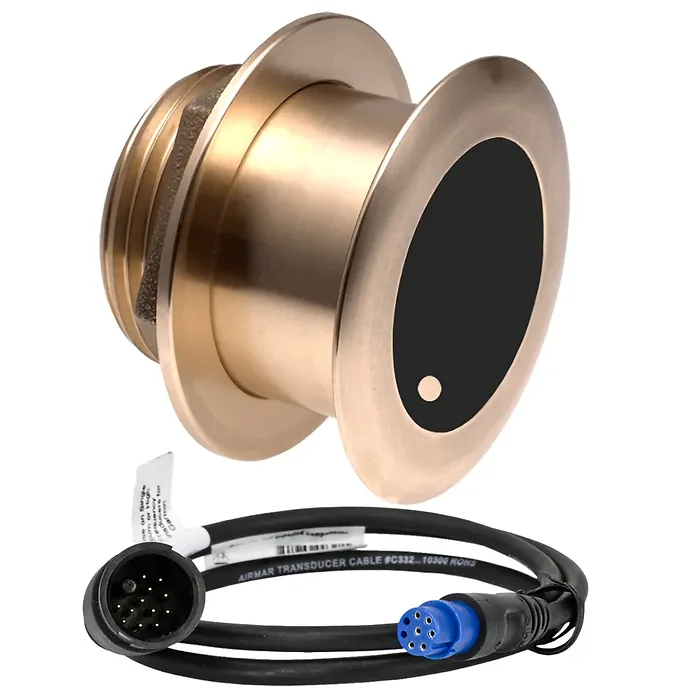

Airmar B175MW 1kW Medium Ultra Wide Chirp Thru-Hull Transducer

The B175MW Chirp Thru-Hull Transducer offers an advanced solution for anglers aiming for pelagic species in the upper water column. With an ultra-wide beamwidth of 57-73° port-starboard and a 20° tilt angle, this transducer maximizes coverage and performance in medium frequency ranges of 60-100 kHz.

The innovative Tilted Element design ensures optimal orientation for echo returns by nearly flush installation with the hull, accommodating hull deadrises from 16° to 24°. This 1 kW transducer is equipped with a depth and fast-response water-temperature sensor, enhancing its utility on the water.

When paired with compatible models, such as the B275LHW, it allows anglers to effectively target various depths, providing a broad frequency range for optimal fish-target separation.

• 1 kW power rating for depth tracking up to 400 m (1,300 ft)
• Medium frequency range of 60-100 kHz for versatile performance
• Ultra-wide beamwidth of 57° to 73° for maximum coverage
• 20° fixed tilt for hulls with deadrise from 16° to 24°
• Fast-response water-temperature sensor included
• Bronze housing suitable for different hull types
• Designed for low-profile thru-hull installation
• Exclusive Xducer ID® technology for enhanced functionality
