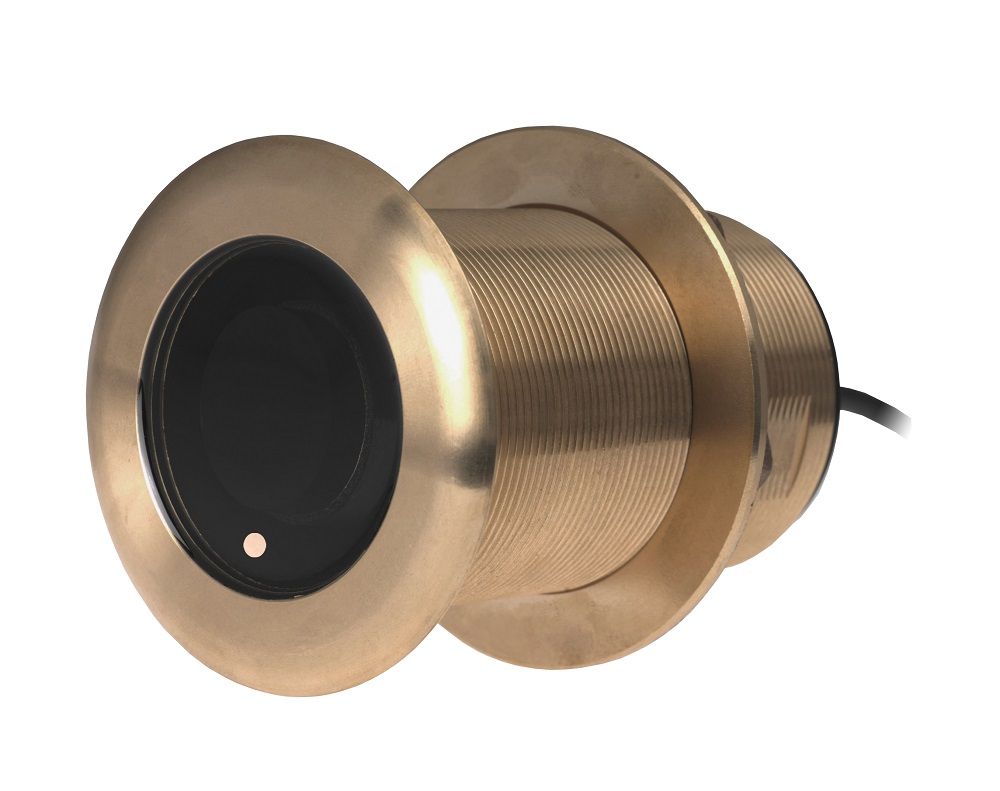

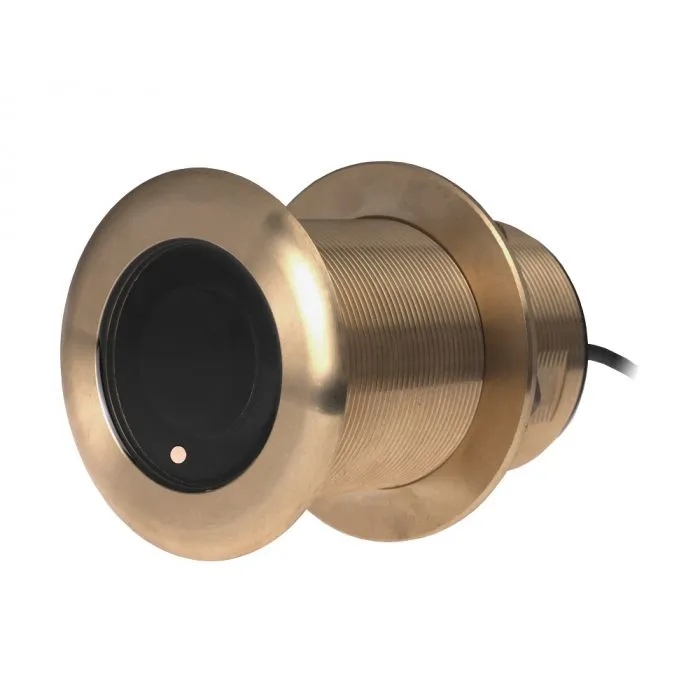

Airmar B75C Medium CHIRP Bronze Transducer with Raymarine 11-Pin Cable

Model: B75C-0-M-11R

• Depth & fast-response water-temperature sensor
• 600 W of power with a maximum depth of 274 m (900')
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID® technology

Airmar's low-profile, Chirp-ready, transducer models are ideal for smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer provides excellent bottom detail in shallow and medium depths down to 274 m (900').

When installed almost flush to the hull, the tilt of the element compensates for the hull deadrise, directing the beam straight down. This ensures optimal echo returns to the transducer and more accurate depth readings.

• Deadrise Range: 0° to 7°
• Hole Size: 70 mm (2-13/16")
• Housing Material: Bronze
• Maximum depth: 900 ft
• Medium Frequency: 80 to 130 kHz
