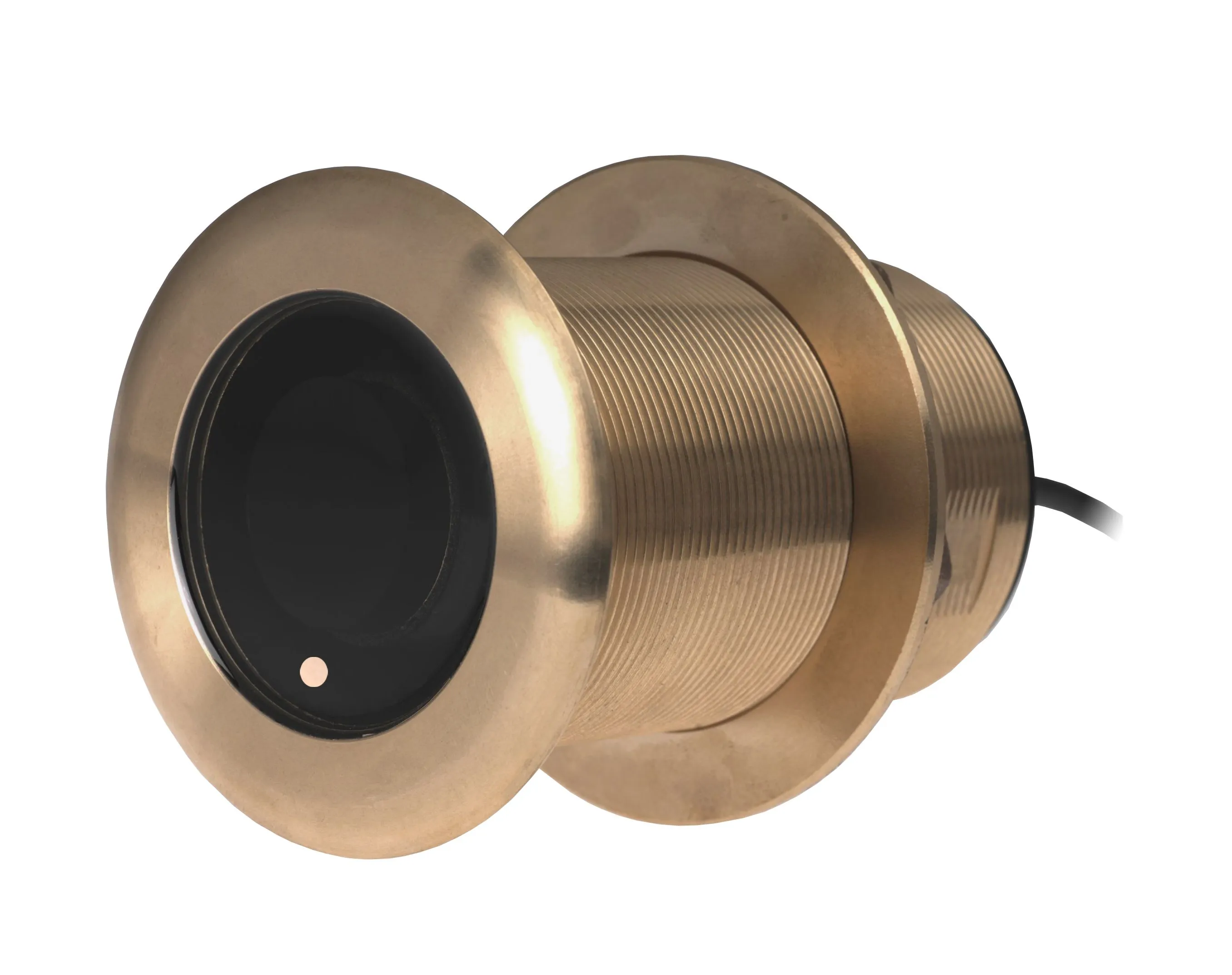

Airmar B75C Low CHIRP Transducer

The Airmar B75C-12-L is designed for performance in deep water, featuring a 12-degree tilt and operating with Garmin’s 8-pin Mix-N-Match Cable. This transducer is equipped with a depth and fast-response water-temperature sensor, providing reliability for fishermen and boating enthusiasts.

With low CHIRP frequencies ranging from 40 kHz to 75 kHz and a beamwidth of 32° to 21°, it offers exceptional deep-water capabilities with a maximum depth of 366 m (1200'). The low-profile design enhances display resolution at speed and is specifically recommended for stepped, planing, or displacement hulls.

The Airmar B75C is ideal for smaller boats, such as center consoles, providing accurate readings even at high speeds. The transducer is constructed with a bronze housing suitable for fiberglass or wood hulls, ensuring durability and performance.

• Depth & fast-response water-temperature sensor
• Low CHIRP frequencies from 40 kHz to 75 kHz
• Beamwidth of 32° to 21° for enhanced coverage
• Power rating up to 300 W
• Maximum depth capability of 366 m (1200')
• Low-profile, thru-hull housing for optimal performance
• Recommended for various hull types including fiberglass and wood
• Operates effectively at high boat speeds
