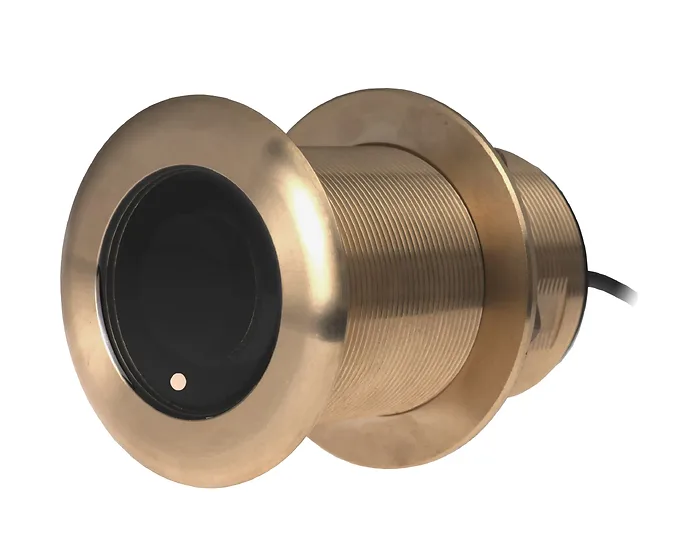

Airmar B75C 12° Tilt Low CHIRP Transducer

This Airmar B75C transducer is designed for deep-water performance with a low-profile, thru-hull housing. It features a depth and fast-response water-temperature sensor that operates on low frequency CHIRP signals from 40 kHz to 75 kHz. The device is ideal for stepped, planing, or displacement hull boats.

With a maximum power rating of 300 W and a maximum depth capability of 366 m (1200'), it provides excellent coverage and tracking while maintaining a good display resolution at high speeds. The B75C transducer includes a tilt element that corrects for the hull's deadrise, ensuring accurate depth readings.

Whether you're navigating through deep waters or operating at high speeds, the B75C is equipped to deliver clear and detailed imaging, making it a valuable addition to any boat.

• Depth and temperature sensor included
• Low-frequency CHIRP range: 40-75 kHz
• Beamwidth: 32° to 21°
• Maximum power: 300 W
• Maximum depth capability: 366 m (1200')
• Ideal for various hull types: stepped, planing, or displacement
• Bronze housing suitable for fiberglass or wood hulls
• Flush installation for optimal performance
• Efficient signal processing for detailed imaging
