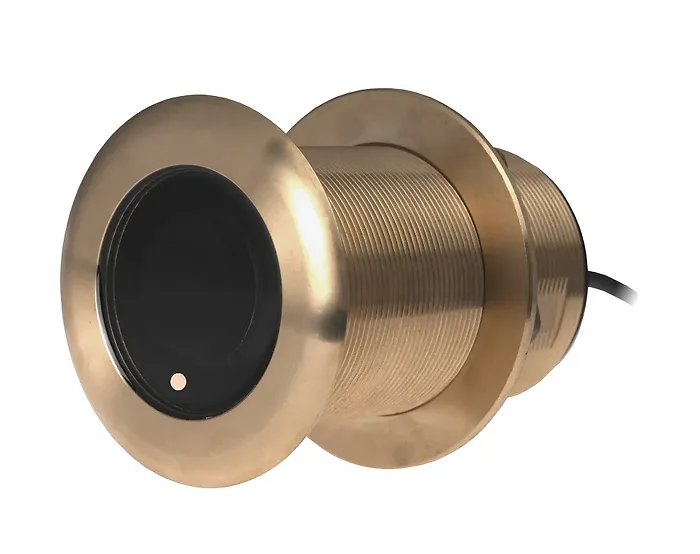

Airmar B75C 12d Tilt Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B75C-12-M-11R

• Depth & fast-response water-temperature sensor
• Medium CHIRP frequencies from 80 kHz to 130 kHz with a beamwidth of 24° to 16°
• Suitable for fiberglass or wood hulls
• Delivers 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz along with the full bandwidth
• Durable bronze transducer housing
• Optimal for boat sizes up to 8 m (25')
• Exclusive Xducer ID® technology for precise readings

Airmar's low-profile, Chirp-ready transducer models enhance smaller boats like center consoles. With a frequency range of 80 to 130 kHz, the B75C offers up to 50 kHz of total bandwidth in a single installation, providing exceptional bottom detail in shallow and medium depths, reaching up to 274 m (900').

When semi-flush mounted, the tilt of the transducer element corrects for hull deadrise, aiming the beam directly downward. This design maximizes echo returns and ensures more accurate depth measurements.

• Cable Length: 9 m (30')
• Deadrise Range: 8° to 15°
• Frequency Band: Medium CHIRP
• Hole Size: 70 mm (2-13/16")
• Housing Material: Bronze
• Power Rating: 600 W
• Retractable Housing: No
• Tilt Angle: 12°
• Transducer Functions: Depth, Temperature
• Beam Width: 24° to 16°
• Maximum Depth: 274 m (900')
