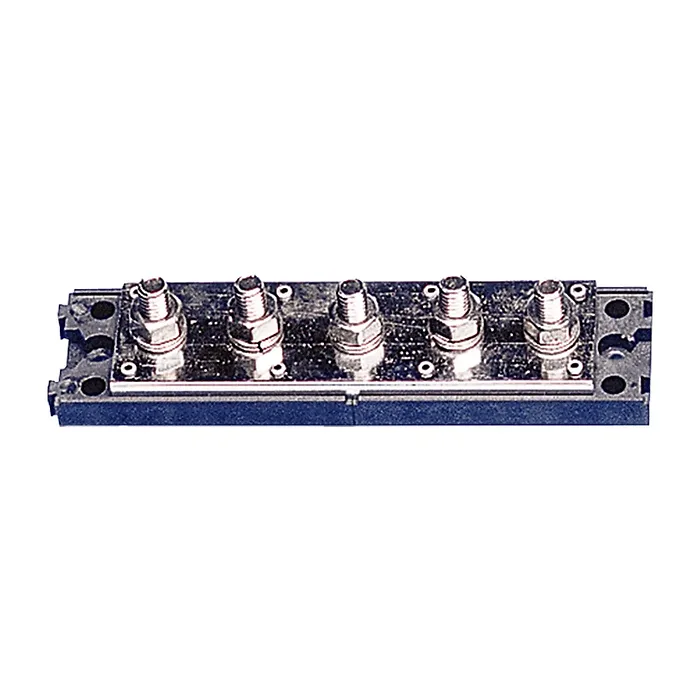

Heavy-Duty 500A Bus Bar

This robust bus bar assembly is rated for 500 amps and is ideal for use as a DC ground tie point or positive bus. Constructed with a 1/4 inch thick copper bar featuring 5/16 inch studs spaced on 1 inch centers, it provides a reliable solution for connecting and distributing large wire gauges.

Product Specifications:

• Accommodates 5/16" ring terminals
• Insulated base made from reinforced nylon resin with a clear protective cover

Dimensions:

• Number of 5/16" Studs: 5
• Size (inches): 6-1/16” x 1-1/2”

• 500-amp rated bus bar
• Heavy-duty copper construction
• Ideal for DC grounding and distribution
• Includes 5 studs for multiple connections
• Insulated base for added safety
