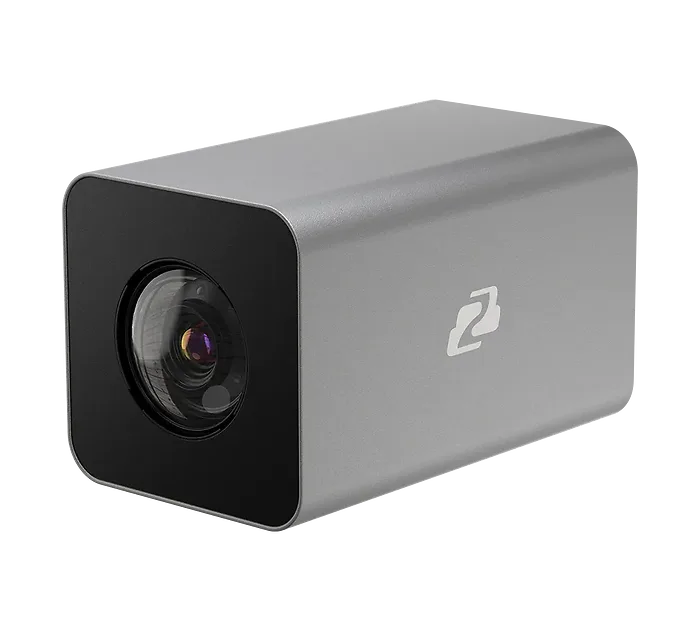

The BG-BSHA series 20X/30X optical zoom IP-streaming camera utilizes a high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides versatile placement options and ease-of-use in a sleek low-profile housing. This camera is well-suited for a wide variety of broadcast and professional A/V applications including lecture streaming, education, room monitoring, studios, and more.

Camera and Features

With a 1/2.8” Sony CMOS sensor, the BG-B20-SHA provides crystal clear imaging at resolutions up to 1080p@60Hz. The 20X optical zoom lens allows the camera to capture tight close-ups, even at a distance. The BG-B20SHA features simultaneous 3G-SDI, HDMI, and IP streaming outputs. By utilizing the 3.5mm audio input, audio can be embedded into your livestreams and recordings with ease.

Connectivity and Control

The BG-B20SHA supports multiple streaming protocols and compression formats including ONVIF, RTSP, RTMP, and SRT. This enables users to stream the output directly to sites like Facebook and YouTube. The combination of outputs provides a high degree of versatility, allowing the BG-B20SHA to be easily integrated into most workflows. Designed for installation in remote locations, the BG-B20SA can be operated via or serial (RS485) control. A web interface provides a full suite of image adjustment options. It supports PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, providing support for compatible joystick controllers.

Camera Specs
Sensor	1/2.8r Exmor CMOS Sensor, 2.38MP
Frame Rate	1080p@60Hz/50/30/25, 1080i@60Hz/50/30/25, 720p@60Hz/50
Zoom	20X/30X Optical, 12X Digital Zoom
Focus	f=4.7mm-94.0mm
Aperture	F=1.6(W)-3.5(T)
Horizontal Field of View	2.9°(T)-65°(W)
Zoom Control	VISCA, PELCO D/P
Input/Output Interface
Video Output	3G-SDI / HDMI / IP Streaming
Audio Input	N/A
Power On	JEITA type (DC IN 12V)
Communication interface	RS485 / RS232
Generic
Dimensions (W x H x L)	70 x 70 x 122mm
Weight	0.44 lbs [0.2kg]
Operating Temperature	-10°C ~ 50°C
Max Comsunption	12W ?DC12V @1A
