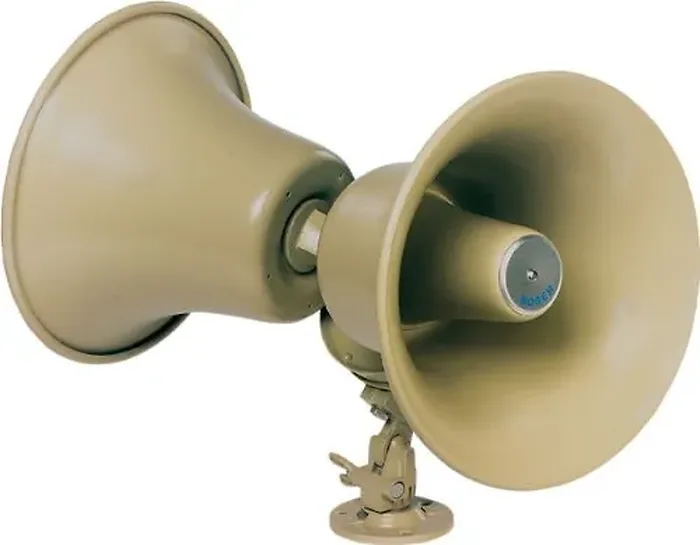

30W Bi-Directional Loudspeaker Horn

MFG No: BG-BDT30A
SKU No: ARY6EQ7IF6
UPC: 765368360097
MFG. Name: Avaya
Available: 4
Condition: New

$232.47


The 30W Bi-Directional Loudspeaker Horn features twin re-entrant horns that deliver high efficiency and outstanding intelligibility. This robust speaker horn is designed with a weatherproof construction to withstand the elements, making it perfect for outdoor use.

With a rotary switch for selecting power taps and a tilt & swivel base, this loudspeaker horn allows for easy aiming and flexibility in installation.

Specifications:

  • Power Rating (RMS): 30 watts continuous; 40 watts equalized
  • Frequency Response: 225Hz to 14kHz
  • Impedance: 25/70 volts
  • Sound Pressure Level: 121dB @ 4 feet on axis with 30 watt input @ 1000Hz for each horn
  • Dispersion: 100 degrees per horn
  • Sensitivity as Microphone: -22dBm [Ref: 10 dynes/cm²]
  • Dimensions: 9-5/8 in. diameter (each horn) x 12-1/8 in. depth
  • Finish: Textured mocha enamel
  • Impedance Selector Switch Settings: 25V @ 15, 7.5, 3.7, 1.8 watts; 70V @ 30, 15, 7.5, 3.7, 1.8 watts

  • High efficiency and excellent intelligibility
  • Sturdy all-metal construction
  • Twin re-entrant horns for bi-directional projection
  • Rotary switch-selected power taps
  • Tilt & swivel base for easy aiming
  • Weatherproof design
