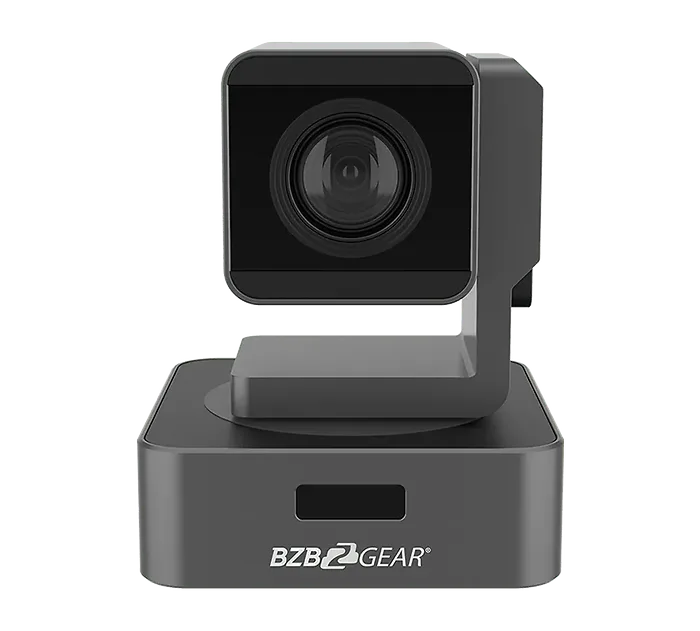

The BG-VPTZN-HSU3 is a compact 1080p HD PTZ camera. Designed with a compact footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs.

Connectivity and Features

The BG-VPTZN-HSU3 camera can capture images at resolutions up to 1080p@60Hz. With simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs this camera can integrate seamlessly with nearly any workflow. Available with 10X, 20X, or 30X optical zoom lenses, the BG-VPTZN-HSU3 produces detailed close-ups in even large venues. The 3.5mm audio input jack allows the BG-VPTZN-HSU3 to embed audio directly into the video stream. The camera supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols.

What is NDIr

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices.

What is NDI|HX2r

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a "cleaner" implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI.

Control

This camera can be controlled using RS-232, RS-485, LAN, or IR remote control. There are various protocols supported including IP VISCA, ONVIF, and PELCO-P/D. There are 255 available preset positions that can be stored internally, with nine of those presets being available via IR remote control.

Camera Specs
Image Sensor	1/2.7″ Exmor CMOS (10X), 1/2.8″ Exmor CMOS (20X), 1/2.8″ Exmor CMOS (30X)
Frame Rate	1080p@60/ 59.94 / 50 /30 / 29.97 /25 1080i@60/59.94 / 50 / 30 / 29.97 / 25 720p@60/50/ 30 / 25, 480i@60, 576i@50
Zoom	Optical - 10X/20X/30X
F-number	1.6(W)-3.5(T) (10X), 1.6(W)-3.5(T) (20X), 1.3(W)-4.8(T) (30X)
Focus	f=5.1mm~51mm (10X), f=4.7mm~94.0mm (20X), f=5.2mm~148.4mm (30X)
Effective Pixels	2.70 Megapixel (10X), 2.38 Megapixel (20X), 2.70 Megapixel (30X)
View Angle (H)	72° (10X), 65° (20X), 65.4° (30X)
Min Illumination	0.5lux (F 1.8, AGG ON)
Shutter Speed	1 to 1/10000s
Image Adjustment	Vertical Flip & Mirror Supported
Input/Output Interface
Video Output	HDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input	1-ch 3.5mm audio interface, Line In
Communication interface	1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
Power Connection	DC IN 12V, Power over Ethernet
Mechanical
Pan/Tilt Rotation	±178°, Tilt Rotation Angle -30°~ +90° Pan 90°/s; Tilt: 90°/s
Presets	Max 255 Presets ( Remote 9 Presets)
Network Protocol	VISCA, PELCO P/D, ONVIF Protocol
IPC Video Features
Video standard	H.265/H.264/MJPEG
Video Stream	Main stream, Sub stream
Main stream resolution	1920x1080, 1280x720
Sub stream resolution	720x480, 320x240
Bit Rate	128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate Type	Variable rate, Fixed rate
Maximum Frame	60fps
Audio encode standard	G.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio stream rate	96K, 128K, 256K
Supported protocols	TCP/IP, RTSP, RTMP
Generic
Dimensions (L*W*H)	4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
Gross Weight	3.5 lbs [1.6kg]
Operating Temperature	-10°C ~ 50°C
Max Consumption	12W DC12V@1A
