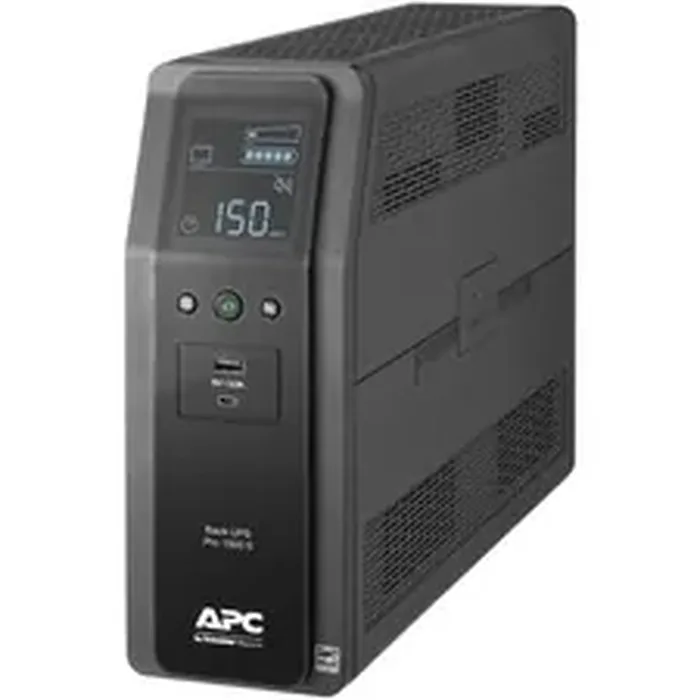

The APC BackUPS Pro sinewave models provide premium battery backup and surge protection Ideal for home or small office electronics networking devices gaming PCs and consoles APC BackUPS Pro models provide sinewave output USB charging ports for your mobile devices and increased runtime for your critical electronics
Output
Output power capacity
600Watts / 1.0 kVA
Max Configurable Power (Watts)
600Watts / 1.0 kVA
Nominal Output Voltage
120V
Output Frequency (sync to mains)
60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(4) NEMA 5-15R (selector_surgetitle)
(6) NEMA 5-15R (Battery Backup)
Transfer Time
8ms typical : 10 ms maximum
Input
Nominal Input Voltage
120V
Input frequency
60 Hz +/- 3 Hz
Input Connections
NEMA 5-15P
Cord Length
6ft (1.83meters)
Input voltage range for main operations
88 - 147V
Number of Power Cords
1
Maximum Input Current
12.0A
Batteries and Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
16hour(s)
Replacement Battery
APCRBC160
Expected Battery Life (years)
3 - 5
RBC Quantity
2
Communications and Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
1080Joules
Data Line Protection
Co-axial Video / Cable protection, Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Surge Protection and Filtering
Surge energy rating
1080Joules
Data Line Protection
Co-axial Video / Cable protection, Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Environmental
Operating Temperature
32 - 104^oF (0 - 40^oC)
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 40^oC
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-10000ft (0-3000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Conformance
Approvals
ENERGY STAR V2.0 (USA), FCC Part 15 Class B, NOM, TUV C-US certified
Equipment protection policy
Lifetime : 250000
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Proposition 65 Warning
Available in Documentation tab
Item Dimension (L"xW"xH")
19 x 15 x 9
Weight
26.01 LB
Warranty Information
NA
