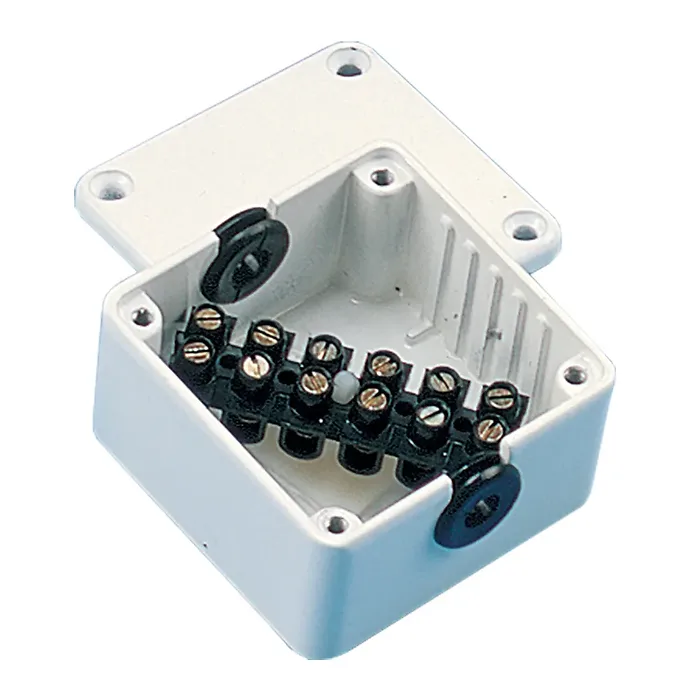

BX-1 Splashproof Junction Box

The Newmar BX-1 Junction Box is designed for secure and protected wiring connections in areas such as wheelhouses, engine rooms, and below decks. Its robust construction and splashproof design make it ideal for marine environments.

Key Features:

• IP Rating 54 – Splashproof
• Durable cast aluminum construction with a white enamel finish
• Metal housing helps minimize electrical interference
• Multiple grommeted cable entries for easy wiring access
• Includes high-quality connector strips with compression fittings - no terminals needed

Specifications:

• Number of Connector Strips: 1
• Positions per Strip: 6
• Max Wire Gauge: 16
• Max Amps (per position): 6
• Cable Entries: 2
• Cable Diameter: 0.25 in.
• Dimensions: 2 x 2 x 1.2 in. (5.1 x 5.1 x 3.1 cm)

• IP54 rated for splashproof protection
• Rugged aluminum housing to reduce electrical noise
• Easy access with multiple grommeted cable entries
• Compression fittings for secure wire connections
• Compact design for versatile installation options
