12 Circuit Bypass Module for NMEA 2000

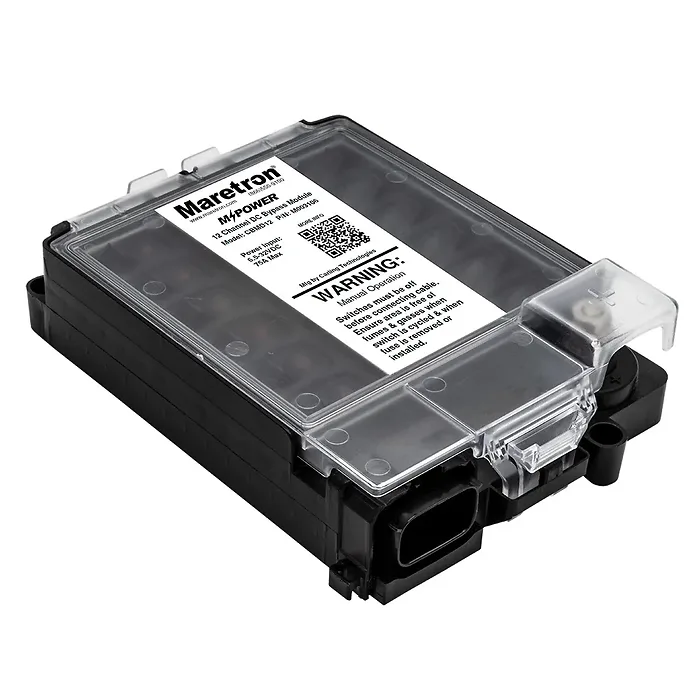

The Maretron 12 Circuit Bypass Module (CBMD12) is designed for manual control of electrical loads in marine and other applications. It serves as an essential backup in the event of a malfunction in the DC Load Controller Module (CLMD12) or a failure in the NMEA 2000® network.

With a maximum current capacity of 75 amps for both 12V and 24V DC systems, the CBMD12 features 12 Carling Curvette® Rocker Switches allowing for ON/OFF control of each load. This setup not only prevents arcing during manual operation but also eliminates the need to move fuses, which can degrade electrical connections over time.

Please ensure that the current ratings for associated fuses are appropriate to safeguard both the load and the wiring. Note that each circuit is controlled independently, therefore parallel outputs are not supported, and dimming capability is not available.

• Maximum current capacity of 75 Amps
• Supports 12V and 24V DC power systems
• 12 Carling Technologies Curvette® Rocker Switches
• Overcurrent protection via ATC standard fuses
• 12A Max (2 outputs), 10A Max (6 outputs), 5A Max (4 outputs)
