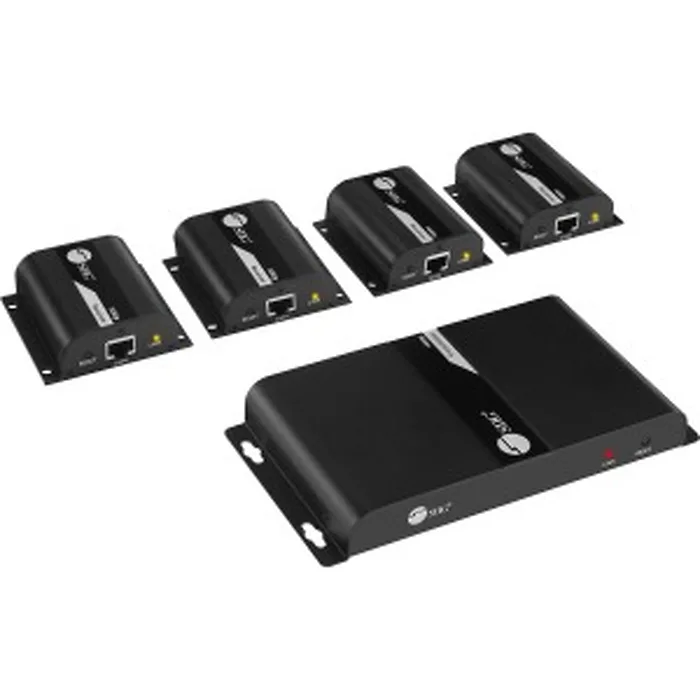

General InformationExtends HDMI signals to four HDMI displays over single Cat6 cable up to 130 feet (40 meters) Extends HDMI signals up to 130ft (40m) over economical Cat6 cabling to up to 4 displays Delivers crystal clear Full HD content up to 1080p@60Hz resolution IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation Plug-n-Play installation, no software installation required Technical InformationConnectivity Technology: WiredNumber of Input Devices Supported: 1Number of Output Devices Supported: 4Maximum Operating Distance: 131.23 ftVideoGraphics Modes: Full HDMaximum Video Resolution: 1920 x 1080Interfaces/PortsNetwork (RJ-45): YesHDMI In: YesHDMI Out: YesNumber of Network (RJ-45) Ports: 8Number of HDMI Inputs: 1Number of HDMI Outputs: 4Media & PerformanceMedia Type Supported: Twisted PairTwisted Pair Cable Standard: Category 7MiscellaneousPackage Contents: 1 x Transmitter 4 x Receiver 5 x Power Adapter 1 x IR Blaster Extension Cable 4 x IR Receiver Extension Cable Screw Kit User Reference Guide Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaWarrantyLimited Warranty: 2 Year
HDMI 1.3 and HDCP 1.2 compliant
Transmission protocol:
HDBitT
Transmission distance:
Up to 130 feet (40 meters) at 1080p at 60Hz
Supports digital stereo 7.1-channel, PCM, DTS, AC3 audio
Supports full frequency IR signal from 20KHz to 60KHz
Resolution:
480p / 720p / 1080i / 1080p at 60Hz
Aluminum housing with wall mount design
Network cable:
UTP/STP CAT6/6a/7
Wiring standard: T-568B
Product
- Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR, Output
1x 8-pin, RJ45, HDMI signal, HDBitT, Output
1x Power jack
1x Reset button
1x 4-Pin Switch, EDID management
- Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR, Input
1x 8-pin, RJ45, HDMI signal, HDBitT, Input
1x Power jack
1x Reset button
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/3A for TX
Output: DC 5V/1A for RX
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L inchxW inchxH inch)
11 x 13 x 3
Weight
4.00lb
Warranty Information
3 years
