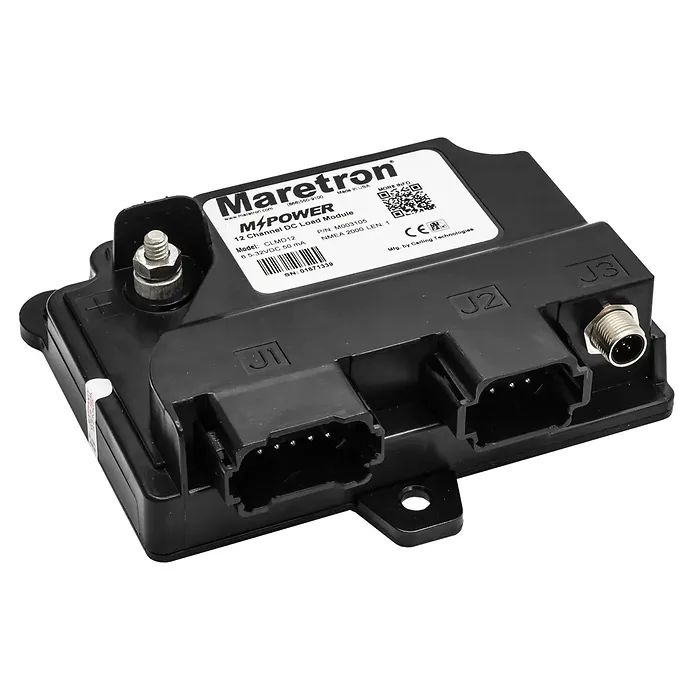

Maretron 12-Channel DC Load Controller Module

The Maretron MPower CLMD12 is an innovative 12-channel DC load controller designed for vessels of all sizes. It features two breakers rated at 12 amps, six at 10 amps, and four at 5 amps, with a total current capacity of 75 amps. This compact module is ideal for managing various electrical loads including lights, pumps, and motors.

Each breaker can be configured to trip at lower current levels, ensuring enhanced protection for smaller circuits. The system supports up to seven hard-wired switches for controlling breaker states or monitoring data inputs such as bilge alarms.

With real-time monitoring available for each channel, users can track current levels to detect overcurrent faults or undercurrent conditions. The option to integrate the MPower 12-Channel Bypass Module provides additional control flexibility.

Key Features:

• NMEA 2000® compliant interface
• IP67 rated for water and dust resistance
• Ignition protection to enhance safety
• Opto-isolated to prevent ground loops
• Twelve dimmable electronic circuit breakers for flexible control
• Individual monitoring of electrical current for each breaker
• Configurable power-up states for breakers
• Automatic overcurrent and thermal shutdown features

Applications:

• Remote navigation light control
• Remote area lighting control
• Alerts for burnt-out bulbs
• Dimming control for onboard lighting

Note: This product cannot be returned to the point of purchase. For any issues, please reach out to the manufacturer directly.
