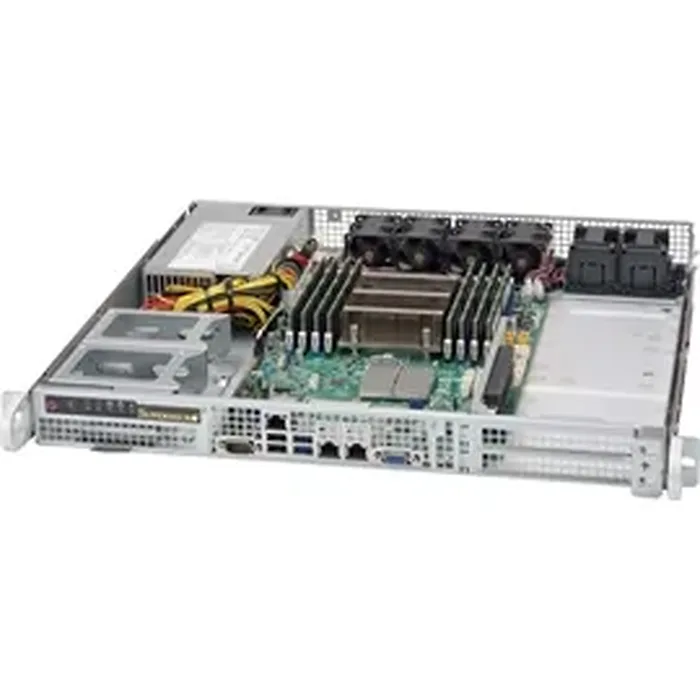

The Supermicro CSE-515-505 is a robust 1U chassis designed for efficient cooling and system monitoring. It supports dual and single Intel/AMD processors, making it versatile for various server applications. With a high-efficiency 500W power supply and multiple drive bays, this chassis is ideal for compact server environments.

• Form Factor: 1U chassis for motherboard sizes 12.3" x 13" and 8.15" x 13.05"
• Processor Support: Supports Dual and Single Intel/AMD Processors
• Expansion Slots: 2 Full Height Expansion Slots
• Drive Bays: Internal Bays for up to 4x2.5-inch drives and 1x3.5-inch drive
• Front Panel:
  • Power On/Off Button
  • System Reset Button
  • 2 x Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD Activity LED
  • Power Status LED
• System Cooling: 4 x 40x56mm PWM Fans for optimal airflow
• System Monitoring: Chassis Intrusion Switch included
• Operating Environment: Temperature range: 5°C to 35°C (operating), -40°C to 60°C (non-operating); Humidity: 8% to 90% (operating), 5% to 95% (non-operating)
• Power Supply: 500W High Efficiency with PMBus 1.2, I2C, PFC; AC Input: 100 to 240V
• Regulatory Compliance: UL listed, FCC, CUL listed, TUV Certified, EN 60950 compliant
• Weight: 16.00 lb
• Warranty: 1 Year
