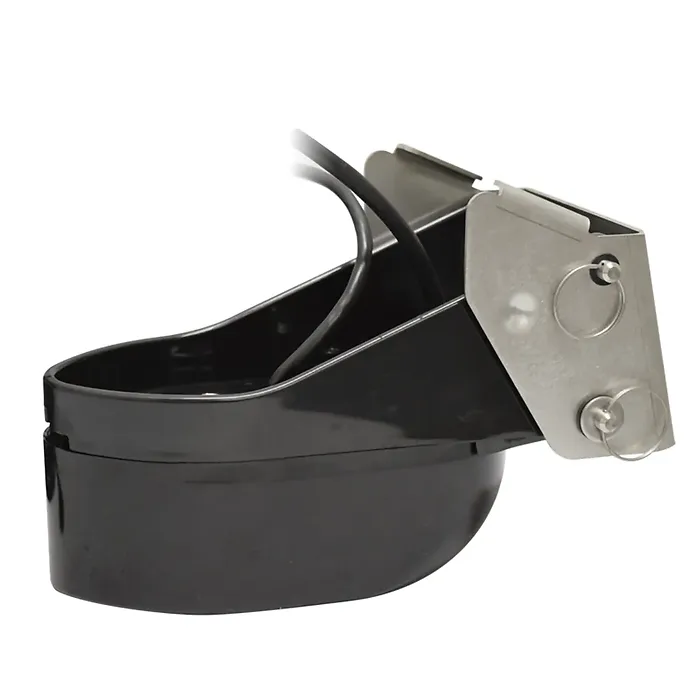

165T-50/200-TM260 Transducer for DFF3D Transom Mount Combo
Transom Mount Combination Transducer
Features:
DFF3D operating frequency 165 kHz
1kW, 50/200 kHz, 20/6° beam angles for sounder elements - the same as an Airmar B164 transducer
12M Cables with 10-pin connector for sounder, 7-pin connector and a pigtail cable for the DFF3D
Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation
Built-in motion sensor
Built in temp sensor
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Operating frequency: 165 kHz
1 kW output with dual frequency support: 50/200 kHz
Beam angles: 20° for 50 kHz and 6° for 200 kHz
Equipped with 12M cables, including a 10-pin connector for the sounder
7-pin connector with pigtail cable for DFF3D connection
Ideal for installation with TZtouch2 or TZtouch/DFF1 systems
Built-in motion sensor for accurate readings
Integrated temperature sensor for water temperature monitoring
