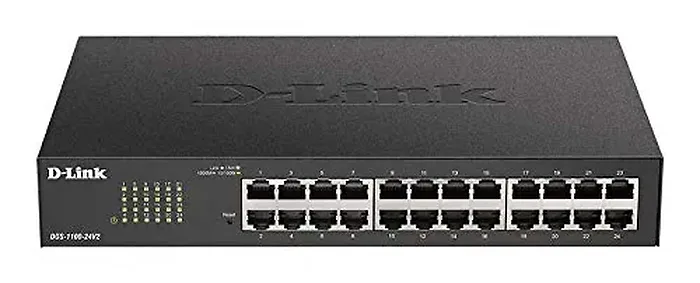

DGS-1100 Series Smart Managed 24-Port Gigabit Switch
1000Base-T Interface
24
Auto MDI/MDIX
Yes
10/100/1000BASE-T ports
24
Switch Capacity
48 Gbps
Max. Packet Forwarding Rate
35.71 Mpps
Power Input
AC: 100-240V
Comply with RoHS 6
Yes Energy Efficiency Ethernet (EEE)
Yes
Power Saving By Link Status
Yes
Power Saving By LED Shut-Off
Yes
Power Saving By Port Shut-Off
Yes
Power Saving By System Hibernation
Yes MAC Address Table Size
8K
802.3x Flow Control
Yes
Head-of-line (HOL) Blocking Prevention
Yes
802.1D Spanning Tree (STP)
Yes
802.1w Rapid Spanning Tree (RSTP)
Yes 802.1AX Link Aggregation
Yes
802.3ad Link Aggregation
Yes
Link Aggregation Group Per Device
12
Max Port Per Link Aggregation Group
8 Jumbo Frame
9216 bytes
Loopback Detection (LBD)
Yes
Port Mirroring
Yes
IGMP Snooping
Yes
Max IGMP Snooping Groups
64 802.1Q VLAN
Yes
VLAN Groups
128
Port-based VLAN
Yes
Voice VLAN
Yes
Auto Surveillance VLAN
Yes Asymmetric VLAN
Yes
Number of Queue
4
Class of Service (CoS)
Yes
Two Rate Three Color Marker (trTCM)
Yes
Rate Limiting
Yes
Queue Handling
Yes
Strict Priority Queue (SPQ)
Yes Weighted Round Robin (WRR)
Yes
Port-based Bandwidth Control
Yes
SSL
Yes
Broadcast/Multicast/Unicast Storm Control
Yes Traffic Segmentation
Yes
D-Link Safeguard Engine
Yes
DoS Attack Prevention
Yes
Cable Diagnostics
Yes Simple Network Time Protocol (SNTP)
Yes Web-based GUI
Yes SNMP
Yes SNMP Trap
Yes TFTP Client
Yes System Log
Yes LLDP
Yes D-Link Discover Protocol (DDP)
Yes (v0.25) DHCP/BootP Client
Yes Dual Images
Yes Ping
Yes
