General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:DK30A2DH
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

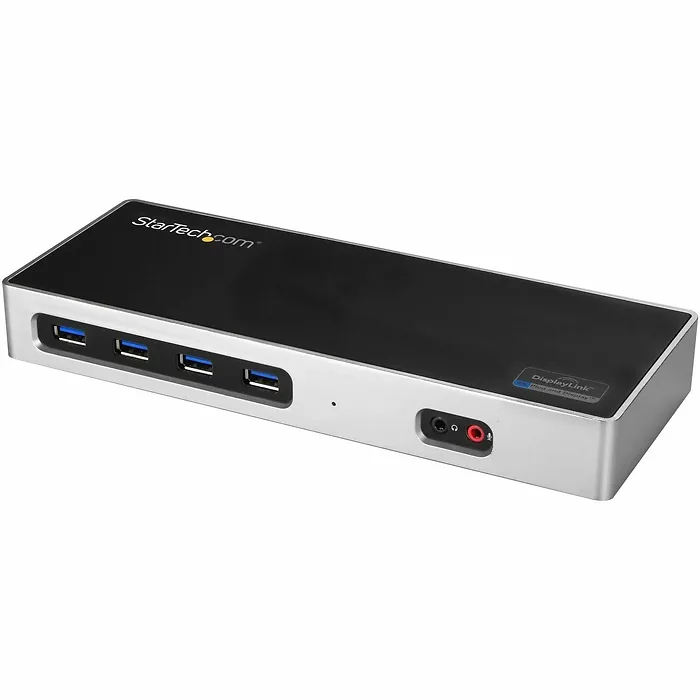

Product Name:Dual-4K Docking Station with 6 x USB 3.0 Ports
Marketing Information:This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors. Enhance Productivity with Dual-4K 60Hz Video Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection. With the dual-4K dock, connect: 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz) 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz) 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz) Connects to USB-C and USB-A Laptops The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops. All the Connections You Need This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable. DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support. More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Docking Station

Technical Information

---

Connectivity Technology:Wired
Device Supported:Notebook
Number of Displays Supported:2
Screen Mode Supported:4K
Supported Resolutions:

• 3840 x 2160
• 4096 x 2160

Network & Communication

---

Ethernet Technology:Gigabit Ethernet

Interfaces/Ports

---

Host Interface:USB Type C
Audio Line Out:Yes
Number of USB 3.0 Ports:6
USB Type-C:Yes
USB Type-C Detail:1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45):Yes
DisplayPort:Yes
Number of DisplayPort Outputs:2
Microphone:Yes
HDMI:Yes
Number of HDMI Outputs:2
Thunderbolt:Yes

Controls/Indicators

---

Status Indicators:1 x Power

Software

---

Operating System Supported:

• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Mac OS X 10.6 Snow Leopard
• Mac OS X 10.12 Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Ubuntu 18.04
• Ubuntu 20.04
• ChromeOS 55+
• macOS 14

Power Description

---

Maximum Power Supply Wattage:40 W

Physical Characteristics

---

Color Family:Dual Color
Product Color:

• Black
• Silver

Height:1.10"
Width:3.30"
Depth:8.80"
Weight (Approximate):15.20 oz

Miscellaneous

---

Package Contents:

• Dual-4K Docking Station with 6 x USB 3.0 Ports
• 1 x USB-C to USB-A cable
• 1 x USB-C to USB-C cable
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-Start Guide

Environmentally Friendly:Yes
Environmental Certification:EU RoHS
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS) 2
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin:China
End of Life Manual Availability:Yes
EU RoHS Declaration URL:https://media.startech.com/cms/pdfs/dk30a2dh_rohs.pdf
REACH Declaration URL:https://media.startech.com/cms/pdfs/dk30a2dh_rohs.pdf
REACH free of SVHC:Yes
WEEE Statement:https://media.startech.com/cms/pdfs/dk30a2dh_weee.pdf

Warranty

---

Limited Warranty:3 Year
