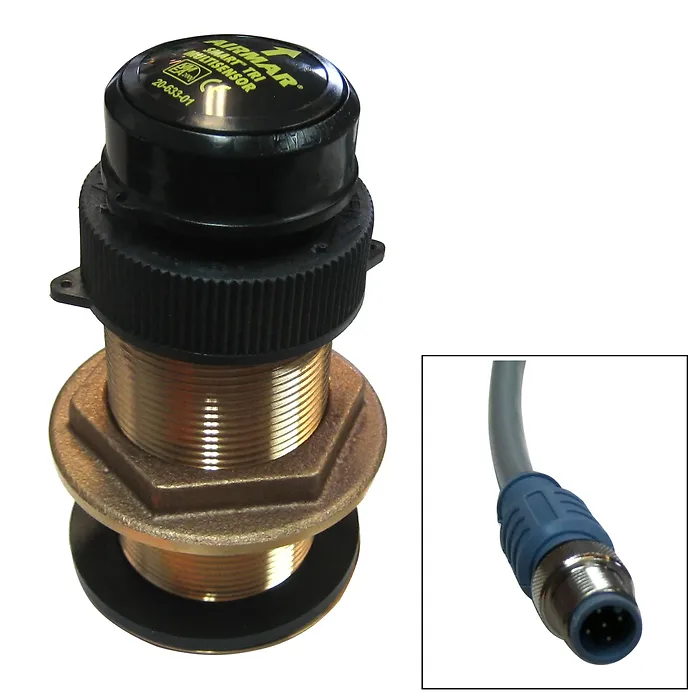

Furuno DT-800MSF - Airmar B617V Housing Style Transducer

Experience unparalleled marine navigation with the Furuno DT-800MSF transducer designed with Airmar's advanced Broadband Ceramic Technology. The 235 kHz element enhances resolution while maintaining exceptional sensitivity. With a robust power rating of 100W RMS, this transducer provides accurate depth readings as shallow as 0.45M (1.4') and can reach depths of up to 180M (600').

Standard Features:

• Combines depth and temperature measurement in a compact bronze housing
• Fast-response temperature sensor with ±0.2°C (±0.1°F) accuracy

Specifications:

• Weight: 1.5kg (3.4lb)
• Acoustic Window: Urethane
• Data Update Rate: 1 per second
• Minimum Sounding Depth: 0.5M (1.6')
• Maximum Sounding Depth: 180M (590')
• Pressure Rating: 3M (10')
• Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
• Smart Sensor Supply Voltage: 10 VDC to 25 VDC at 100% Sound Power Output
• Supply Current: 40 mA
• Standard Cable Length: 6M
• NMEA 2000® Load Equivalency Number (LEN): 4

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

• High-resolution 235 kHz element for improved clarity
• Accurate depth readings from 0.45M to 180M
• Compact and durable bronze housing
• Fast-response temperature sensor for precise measurements
• Compatible with NMEA 2000® systems
• Lightweight at only 1.5kg (3.4lb)
