Technical InformationScreen Size: 17"Screen Mode: SXGAResponse Time: 30 msAspect Ratio: 5:4Horizontal Viewing Angle: 170°Vertical Viewing Angle: 160°Adjustable Display Angle: YesMount Type: Desk MountableBacklight Technology: LEDFeatures: Security LockHorizontal Frequency: 80 kHzVideoMaximum Resolution: 1280 x 1024Standard Refresh Rate: 75 HzColor Supported: 16.7 Million ColorsContrast Ratio: 800:1Brightness: 250 NitTouchscreen InformationTouchscreen: YesTouchscreen Type: Surface Acoustic WaveInterfaces/PortsUSB: YesVGA: YesPower DescriptionOperating Power Consumption: 36 WPhysical CharacteristicsVESA Mount Compatible: YesVESA Mount Standard: 75 x 75Color: BlackHeight with Stand: 14.17"Width with Stand: 15.43"Depth with Stand: 7.52"Weight (Approximate): 12.10 lbMiscellaneousPackage Contents: 1717L Rev A Multifunction 17-inch Desktop TouchmonitorPower CableTouch/Video CablesCertifications & Standards: C-TickcULICCCCCEVCCIKCCe-StandbyCoCBSMIULFCCCBIMERCPlatform Supported: PCEnvironmentally Friendly: YesEnvironmental Certification: RoHS, WEEE, China RoHSWarrantyLimited Warranty: 3 Year

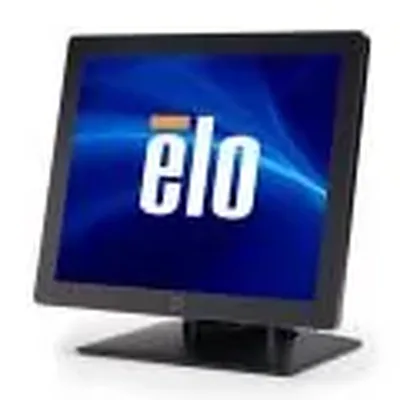

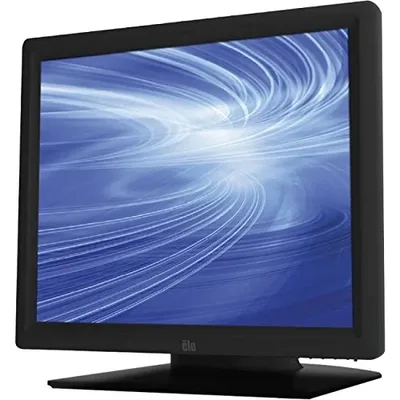

Model
1717L Color
Black LCD Technology
Active Matrix TFT LCD with LED Backlighting Diagonal Size
17.0inch Monitor Thickness
1.7inches / 43mm Panel Depth Aspect Ratio
5:4 Active Display Area
13.3 x 10.6 inches / 338 x 270mm Native Resolution
1280x1024 Present Video Timings
640x480 at 60Hz, 75Hz
720x400 at 70Hz
800x600 at 56Hz, 60Hz, 75Hz
1024x768 at 60Hz, 75Hz
1280x1024 at 60Hz, 75Hz Colors
16.7 Million Brightness (Typical)
LCD Panel: 250 Nits
with AccuTouch: 200 Nits
with IntelliTouch: 225 Nits
with iTouch: 225 Nits Response Time (Tr + tf) (Typical)
7.8msec Viewing Angle (Typical)
Horizontal: 85 Degree or 170 Degree Total
Vertical: 80 Degree or 160 Degree Total Contrast Ratio (Typical)
1000:1 On-Screen Display (OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power Video
Analog VGA on Female DE-15 connector
Input Video Horizontal Sync frequency range: 31.5- 80KHz
Input Video Vertical Sync (frame rate) frequency range: 56-75Hz Touch Interface
Serial (RS232) and USB Power
Monitor Input Power Connector AC: IEC 60320 C6
Monitor Input Power Signal Specifications: 100 to 240V AC, 50/60 Hz
Monitor Input Power Connector DC: Coaxial Power Jack (2.1mm Pin Outer Diameter, 6.4mm Barrel Inner Diameter)
Monitor Input Power Signal Specifications: 12V DC +/-5%
Note: Optional AC-DC Power Adapter Sold for this Monitor
Adapter Input Connector: IEC 60320 C14
Adapter Input Voltage Range: 100 to 240V AC 50/60Hz Power Consumption (Typical)
On (Monitor Only): 20W
Sleep (Monitor Only): 1.1W
Off (Monitor Only): 0.8W Environmental
Temperature:
- Operating: 32 F to 104 F (0 C to 40 C)
- Storage: -4 F to 140 F (20 C to 60 C)
Humidity:
- Operating: 20% to 80%
Storage: 10% to 90%
