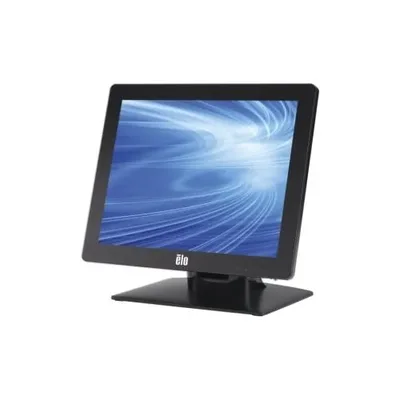

Elo 1517L 15" LED LCD Touchscreen Monitor - 4:3 - 25 ms - IntelliTouch Surface Wave - 1024 x 768 - XGA-2 - Adjustable
Color
Black LCD Technology
Active matrix TFT LCD with LED backlighting Diagonal size
15.0 inch Monitor thickness
1.7 inches/43 mm panel depth Aspect Ratio
4:3 Active Display Area
8.98 x 11.97 inches/228 x 304 mm Native Resolution
1024 x 768 Preset Video Timings
640x480 at 60Hz, 75Hz
720x400 at 70Hz
800x600 at 56Hz, 60Hz, 75Hz
1024x768 at 60Hz, 75Hz Colors
16.2 million Brightness (Typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
IntelliTouch ZB: 225 nits
IntelliTouch Pro PCAP: 225 nits Response Time (Tr+tf) (Typical)
16 msec Viewing Angle (Typical)
Horizontal: +/-80^o or 160^o total
Vertical: +/-70^o or 140^o total Contrast Ratio (Typical)
700:1 On-Screen Display (OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power Video
Analog VGA on Female DE-15 connector
Input Video Horizontal Sync frequency range: 31.5- 60KHz
Input Video Vertical Sync (frame rate) frequency range: 56-75Hz Touch Interface
Serial (RS232) and USB Power

Monitor input power connector - AC
IEC 60320 C6 Monitor input power signal specifications
100-240VAC, 50/60Hz Monitor input power connector - DC
Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter) Monitor input power signal specifications
12VDC +/-5%
