Raymarine RVX1000 3D CHIRP Sonar Module

Name: E70511 Raymarine RVX1000 3D CHIRP Sonar Module
Brand: TELEDYNE FLIR MARITIME US, INC
SKU: LRIFJWAVXQ
Price: 1067.99 USD
Availability: InStock

MFG No: E70511
SKU No: LRIFJWAVXQ
UPC: 723193825624
MFG. Name: TELEDYNE FLIR MARITIME US, INC
Available: 2
Condition: New

$959.99

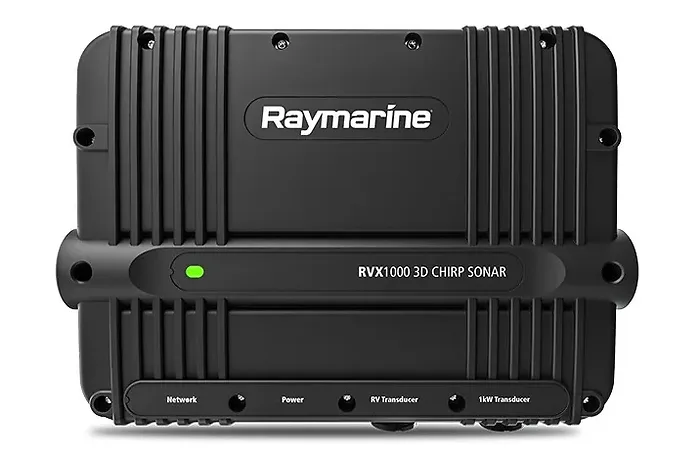

Raymarine RVX1000 High Performance 3D CHIRP Sonar Module

Model: E70511

RealVision 3D
CHIRP SideVision
CHIRP DownVision
Low-power, high-frequency CHIRP
1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz)

The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine's award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.

Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar. Sonar Scroll Back - rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints. TruZoomTM magnification reveals extra target detail without loss of resolution.

RealVision 3DTM sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.

Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.

The RVX1000's dedicated quad core processor allows previous generation MFD's to run multiple sonar channels simultaneously without any compromise in performance.

Specifications
Sonar

RealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
Sonar Depth	High Frequency CHIRP = 900 feet, DownVision = 600 feet, SideVision = 300 feet Port and Starboard, 1kw = 5,000 feet
Connections	1x RVX Port = 25 pin RealVision connector, 1x 1kw Port = 11 pin 1kW connector, 1x Power connection, 1x Raynet connection
Waterproof Rating	IPX6/IPX7
Operating Temperature	-25 C (-13 F) to +55 C (+131 F)
Storage Temperature	-30 C (-22 F) to +70 C (+158 F)
Display Compatibility
Axiom / Axiom Pro (LH3.4.xx or later)	Compatible with full feature set
eS Series / gS Series (LH3.4.xx or later)	Compatible with full feature set
Transducer Compatability
REALVISION 25-PIN TRANSDUCER OPTIONS
RealVisionTM Transducers	Direct connect to 25-pin port
CPT-S Transducers	Adapter A80490 to connect to 25-pin port
DownVisionTM Transducers	Adapter A80490 to connect to 25-pin port
1KW 11-PIN TRANSDUCER OPTIONS
Airmar CHIRP	Direct connect to 11-pin port. When using only one half of an Airmar transducer pair (e.g. B175) use the A80328 Adapter.
Airmar 50/200kHz CP370 Connector	Adapter A80496 to connect to 11-pin port
Airmar 50/200kHz Embedded Connector	Not supported on RVX1000. Airmar transducers with the embedded connector are non-differential and therefore, do not align with the pin configuration of the RVX1000 1kW port.
NOTE: Axiom Y-Cables are not supported on the RVX1000
Input Voltage	10.8 V to 31.2 V DC
Input Draw	10.4 W (Maximum)
