UFlex Power A EM12 Electronic Control Package - Dual Station

Power A EM12 - Electronic Control Package

- Single Engine/Dual Station - Electronic Throttle/Mechanical Shift

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connect up to 4 control stations
• Modular system design
• Direct communication with electronic engines (SAE J 1939 or NMEA 2000)
• Plug'N Play connectivity
• Automatic engine synchronization
• Dock Assist feature
• Fully programmable shift delays

EM12 Package Includes:

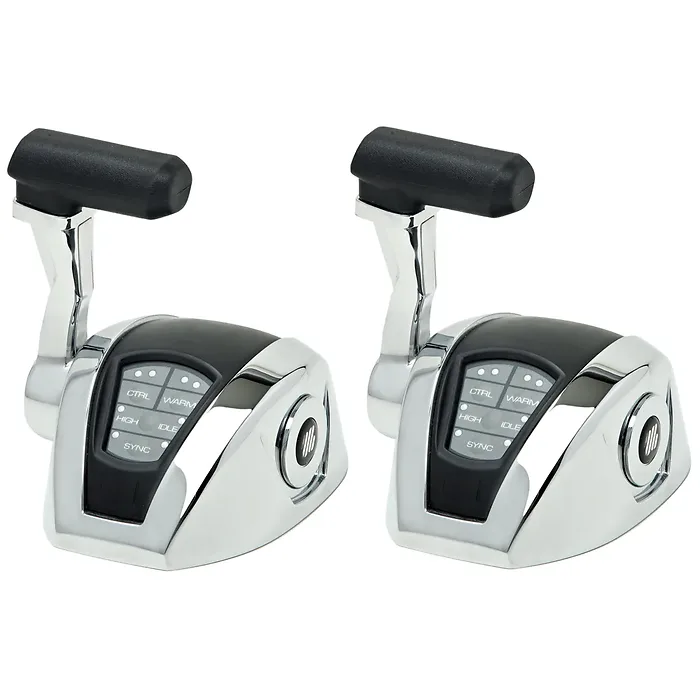

• 42009G - (2) PA2-B1 - Single Lever Control w/o Trim
• 42017F - (1) PA2-CU - Control Unit with LED Diagnostic & Programming Screen
• 42018H - (1) PA2-VT - V-Throttle for 0-5V Interface
• 42027J - (1) PA2-MA - Electro Mechanical Actuator for Shift and/or Throttle
• 42028L - (1) PA2-NT - Network Terminator
• 42029N - (1) T-VT2 - Universal V-Throttle Cable 6.5'
• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'
• 71021K - (2) CAN-10 - Network Connection Cable 33'
• 73639T - (2) CAN-1 - Network Connection Cable 3'

• Single Engine/Dual Station support
• Advanced electronic control technology
• Easy installation with Plug'N Play connectivity
• Automatic synchronization and Dock Assist capability
• Fully customizable shift delays for improved performance
