General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:ET90110SM302
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

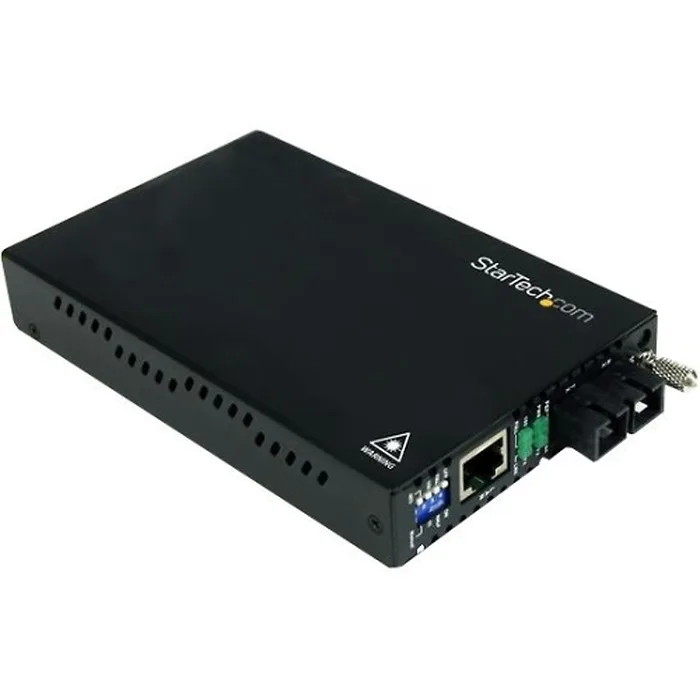

Product Name:10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Marketing Information:

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity:1
Product Type:Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports:2
Network (RJ-45):Yes
DVI:No
USB:No
Parallel Port:No
Digital Audio:No
Digital Audio/Video:No
Number of Network (RJ-45) Ports:1
Number of SC Ports:1
SC Port Type:Duplex

Media & Performance

---

Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported:Single-mode
Fiber Optic Wavelength:1310 nm
Maximum Distance Supported:18.64 Mile

Network & Communication

---

Ethernet Technology:Fast Ethernet
Network Technology:

• 10/100Base-TX
• 100Base-FX

Power Description

---

Power Source:AC Adapter
Input Voltage:12 V DC
Power Consumption:19.20 W
Plug/Connector Type:Type M

Physical Characteristics

---

Product Color:Black
Form Factor:

• Desktop
• Rack-mountable

Height:0.9"
Width:3.4"
Depth:6.1"
Weight (Approximate):13.80 oz

Miscellaneous

---

Package Contents:

• 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
• 1 x Universal Power Adapter
• 1 x Grounding Screw
• 1 x Instruction Manual

Compatibility:

ETCHS2U Rackmount Chassis

Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• FC
• FCC

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• REACH
• WEEE

Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

---

Limited Warranty:2 Year
