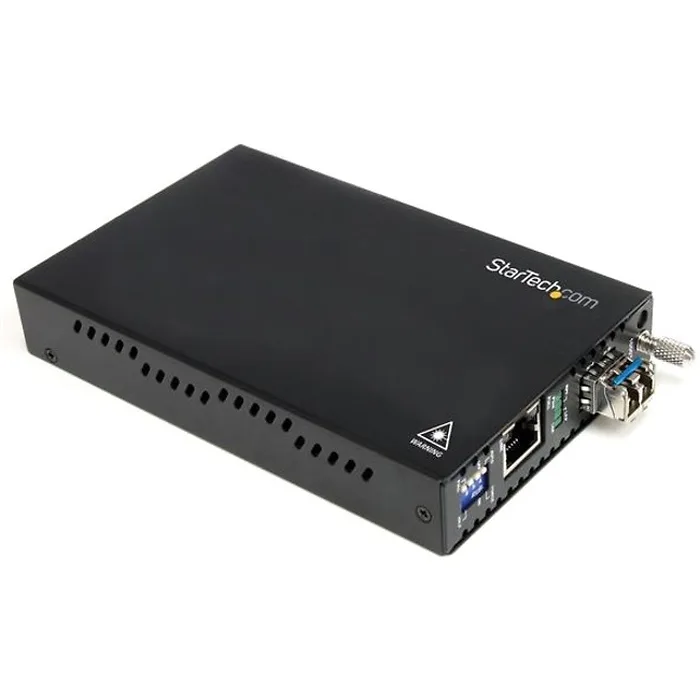

General InformationThe ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft). A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot. Backed by a StarTech.com 2-year warranty and free lifetime technical support.Interfaces/PortsTotal Number of Ports: 2Network (RJ-45): YesDVI: NoUSB: NoParallel Port: NoDigital Audio: NoDigital Audio/Video: NoManagement Port: NoNumber of LC Ports: 1Number of Network (RJ-45) Ports: 1Media & PerformanceMedia Type Supported: Optical FiberMedia Type Supported: Twisted PairFiber Mode Supported: Multi-modeMaximum Distance Supported: 1804.46 ftNetwork & CommunicationEthernet Technology: Fast EthernetNetwork Technology: 1000Base-TNetwork Technology: 1000Base-SX/LXPower DescriptionInput Voltage: 12 V DCPhysical CharacteristicsColor: BlackForm Factor: Rack-mountableForm Factor: DesktopHeight: 0.8"Width: 3.7"Depth: 6.3"Weight (Approximate): 14.30 ozMiscellaneousPackage Contents: Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m 1 x Universal Power Adapter 1 x Grounding Screw 1 x Instruction Manual Compatibility: ETCHS2U Rackmount ChassisCertifications & Standards: IEEE 802.3IEEE 802.3uIEEE 802.3abFCFCCEnvironmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: REACHEnvironmental Certification: WEEETAA Compliant: YesWarrantyLimited Warranty: 2 Year
Hardware
PoE:No
WDM:No

Connector(s)
Local Unit Connectors:
1 - Fiber Optic LC Female
1 - RJ-45 Female Performance
Maximum Data Transfer Rate:2000 Mbps (full duplex mode)
Max Transfer Distance:550 m (1804 ft)
Fiber Type:Multi Mode
Wavelength:850nm
Fiber Operating Mode:Half/Full-Duplex
Auto MDIX:Yes
MTBF:65,000 Hours Color
Black

Enclosure Type
Steel Power
Power Adapter Included:Yes
Input Voltage:115 - 230 AC
Output Voltage:12 DC
Output Current:1A
Center Tip Polarity:Positive
Plug Type:M
Power Consumption:< 4W

Included in Package
1 - Fiber Media Converter
1 - Universal Power Adapter (NA/UK/EU)
1 - Instruction Manual Item Dimension (L"xW"xH"):
1.59 x 9.06 x 3.54

Weight:
2.76 lb

Warranty Information:
2 Years
