FAX30 Weatherfax & Navtex Receiver

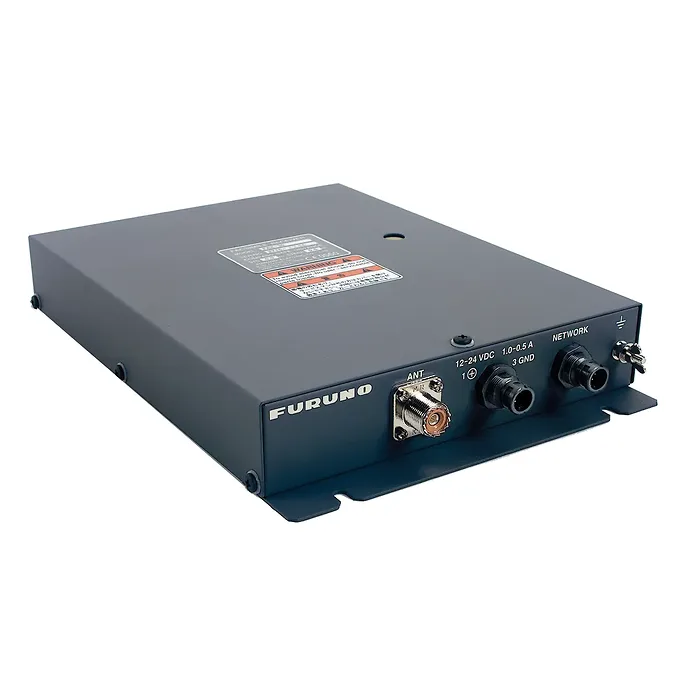

The Furuno FAX30 is a versatile external black box designed to transform any NavNet display or PC into a powerful Weatherfax and Navtex receiver. Its waterproof design ensures durability while connected via a single Ethernet cable to a NavNet display or an Ethernet hub. This allows multiple NavNet displays to access the FAX30 simultaneously. Additionally, the FAX30 can be connected to any standard PC equipped with an Ethernet card.

The unit efficiently receives essential weather images and navigational information, which are displayed on the connected screen with user-friendly softkey menu options. On a PC, users can access the information through their web browser without needing to install a complex software solution. Users can conveniently print vital information using their PC and printer.

Experience unmatched weather tracking capabilities by combining the FAX30 with NavNet’s true color radar, enabling safer navigation even in unpredictable weather conditions.

• Cost-effective, paperless Weatherfax and Navtex receiver.
• Direct connectivity to a 10.4" NavNet display or through an Ethernet hub.
• Compatible with standard PCs equipped with Ethernet.
• Selectable display colors: 8 gray tones, monochrome, blue shades, pink and black, red and blue.
• User-friendly softkey menu for easy operation on NavNet displays.
• Accessible through web browser on generic PCs with no proprietary software.
• Print functionality for images and messages using a PC and printer.
• Store up to 12 weather fax images depending on file size.
• Retrieve Navtex messages with available storage for up to 130 files.
• View stored images/messages at any time.
• 320 user-programmed channels for personalized settings.
• Noise rejection technology for clear images.
• Thumbnail view simplifies the selection of stored images.
• Phase and synchronization adjustments available post-reception.
• Fax Frequency Range: LF - 80 kHz to 160 kHz, MF/HF - 2 MHz to 25 MHz.
• Navtex Frequency Range: 490 kHz or 518 kHz.
• 1,000 channels available.
• Fax Mode of Reception: F3C, J3C.
• Navtex Mode of Reception: F1B.
• Waterproof design meeting IEC 60529 standards.
