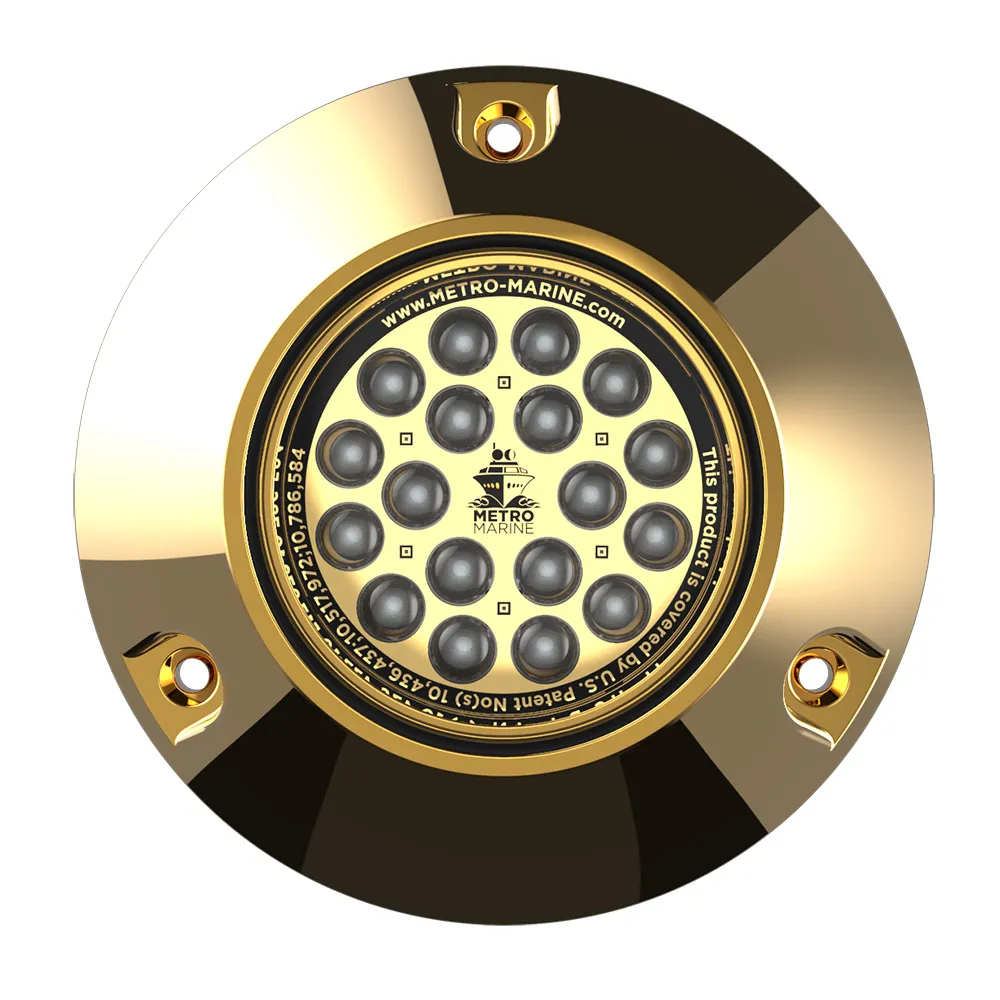

Metro Marine Blue High-Output Underwater Light - 90° Beam

The Metro Marine F-Series underwater lighting fixture is engineered for installation at depths up to 4.6M (15') below the water's surface, delivering a striking Blue light. Crafted with watertight aluminum bronze housings and silicon bronze hardware, these luminaires are ideal for various marine applications, including yachts, docks, and fountains. The innovative design features 18 High-Output LEDs per fixture, which allow for close positioning of multiple fixtures while ensuring uniform light distribution.

Designed for mid- to large-scale structures, the F-BME1-H-B3-90 model utilizes a 90° optical lens to provide efficient lighting for yachts ranging from 10M (32') to 30M (100'), ensuring excellent color control and efficiency.

Clear Lens Technology

To combat biofouling that can diminish light output and cause overheating, Metro Marine's patent-protected UVC LEDs keep the lenses of our fixtures crystal clear.

Anti-Condensation Assembly Methodology

To address the critical issue of condensation, which can lead to internal corrosion, our fixtures are manufactured in a Class 1000 Clean Room using a patent-pending assembly methodology that ensures they remain free of condensation.

Technical Specifications:

• Beam Angle: 90°
• Input Voltage: 10VDC-30VDC
• Power Consumption: 45.5W
• Dimensions: 7.23" (W) x 2.91" (H) x 1.09" (D)
• Weight: 2.42 lbs
• Lens Material: Clear Quartz
• Operating Temperature: -40 to 122°

• High-output 90° beam angle for wide coverage
• Durable aluminum bronze housing for marine environments
• Self-cleaning lenses with UVC technology
• Designed for depths up to 15' underwater
• Lightweight for easy installation
• Efficient power consumption at 45.5W
