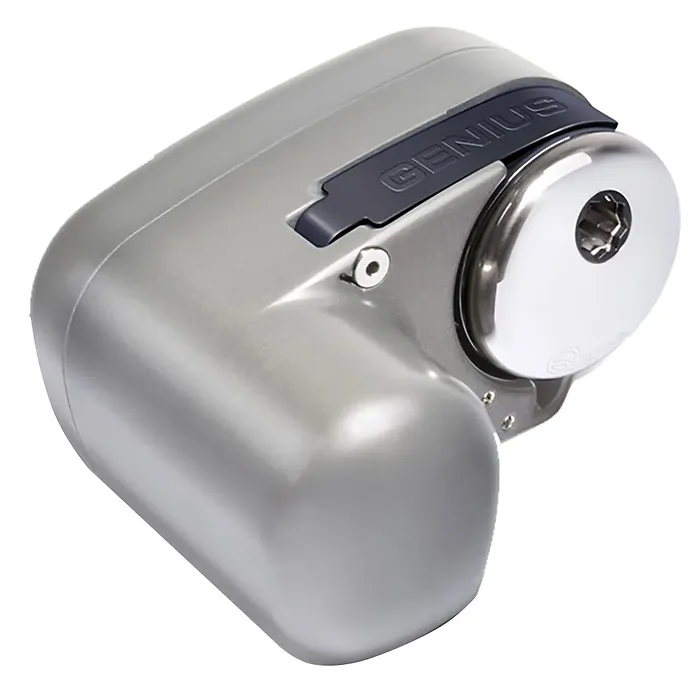

GP2 2000 Horizontal Windlass - 800W - 12 V - 5/16" Drum

The GP2 2000 is a horizontal windlass application windlass that is perfect for boats with limited space in the anchor locker. This unit comes equipped with an enclosed motor and an epicyclical gearbox. The casing is composed of plastic composite material for the 800 W unit. This unit also has a manual freefall capability for quick anchoring. The unit is sold complete with the windlass, solenoid unit, clutch handle, mounting hardware, and user manual.

Features:

• Windlasses are equipped with an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes)

Specifications:

• Weight: 32 lbs.
• Dimensions: 17 × 17 × 12 in.
• Drum: Yes
• Gypsy Size: 5/16 in. (7.94 mm)
• Series: Genius
• Freefall: No
• Voltage: 12V
• Motor Power 800W
• Motor Supply Voltage: 12 V
• Maximum Pull: 1984 lb.
• Maximum Working Load: 772 lb.
• Working Load: 265 lb.
• Current Absorption at Working Load (1): 76 A
• Maximum Chain Speed (2): 97..1 ft/min
• Maximum Chain Speed at Working Load (2): 65.9 ft/min
• Weight – Mini Genius with Drum: 25.3 lb.
