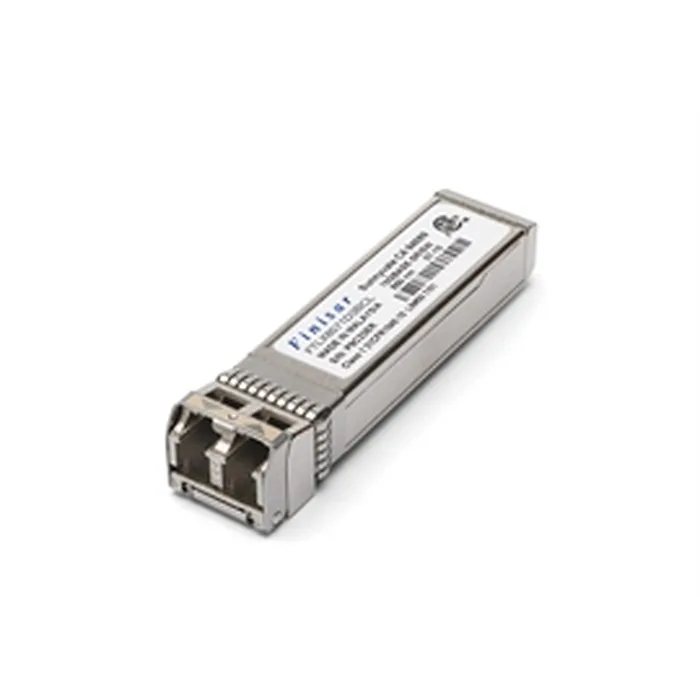

General InformationFinisar's FTLX8574D3BCL 10Gb/s SFP+ optical transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, SFF-8432, IEEE 802.3-2012 10GBASE-SR/SW and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The FTLX8574D3BCL is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.Technical InformationApplication/Usage: Optical NetworkApplication/Usage: Data NetworkingInterfaces/PortsInterfaces/Ports Details: 1 x LC Duplex 10GBase-SR/SW NetworkMedia & PerformanceMedia Type Supported: Optical FiberFiber Mode Supported: Multi-modeEthernet Technology: 10 Gigabit EthernetNetwork Technology: 10GBase-SR/SWNetwork Technology: Fiber ChannelPhysical CharacteristicsForm Factor: Hot-pluggableMiscellaneousEnvironmentally Friendly: YesEnvironmental Certification: RoHS-6Country of Origin: Malaysia
Distance
400m
Data Rate (max)
10.5 Gb/s
Protocol
10x Fibre Channel Compliant ,10 Gigabit Ethernet Compliant ,Wireless CPRI Compliant
Low End Case Temperature
-5 degree Celsius
High End Case Temperature
70 degree Celsius
Diagnostics
Digital
Transmitter
VCSEL
Receiver
PIN
Voltage Supply
3.3
Connector
LC
Wavelength
850nm Band
Item Dimension (L"xW"xH")
5 x 2 x 1
Weight
1 lb
Warranty Information
Lifetime
