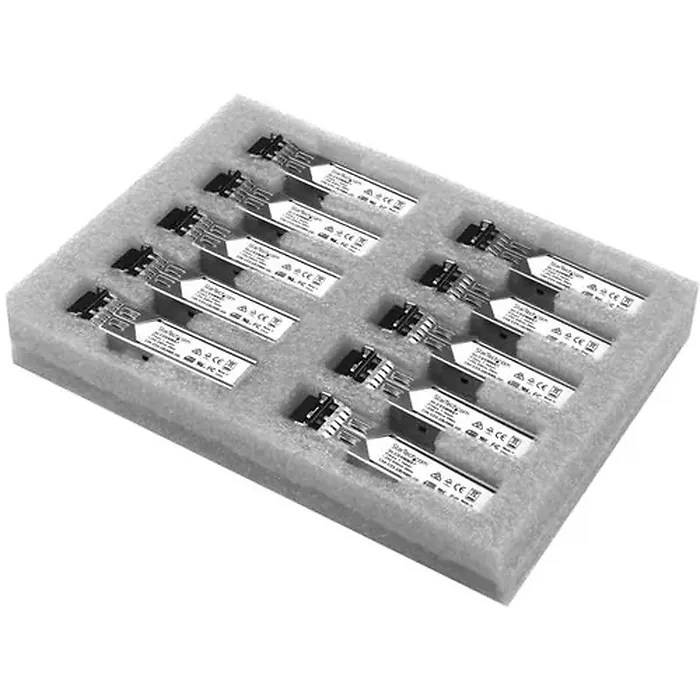

General InformationThe GLCSXMM10PST is a ten-pack of our Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550 m (1804 ft) MTBF: 3,381,761 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): No This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.Technical InformationApplication/Usage: Optical NetworkApplication/Usage: Data NetworkingInterfaces/PortsInterfaces/Ports Details: 1 x LC Duplex 1000Base-SX NetworkMedia & PerformanceMedia Type Supported: Optical FiberFiber Mode Supported: Multi-modeEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-SXPhysical CharacteristicsForm Factor: Hot-pluggableHeight: 0.5"Width: 0.5"Depth: 2.2"Weight (Approximate): 0 lbMiscellaneousCompatibility: MSA CompliantEnvironmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: REACHEnvironmental Certification: WEEECountry of Origin: ChinaWarrantyLimited Warranty: Lifetime
Hardware
Industry Standards : IEEE 802.3z 1000BASE-SX
WDM : No Performance
Compatible : Networks 1000 Mbps (1 Gbps)
DDM : No
Fiber Operating Mode : Half/Full-Duplex
Fiber Type : Multi Mode
Max Transfer Distance : 550 m (1804 ft)
Maximum Data Transfer Rate : 1.25 Gbps
Wavelength : 850nm Connector(s)
Local Unit Connectors : 1 - Fiber Optic LC Duplex Female Special Notes / Requirements
Note : For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements : MSA or Cisco compliant SFP port Environmental
Humidity : 5 to 95 percent RH
Operating Temperature : 0^oC to 70^oC (32^oF to 158^oF)
Storage Temperature : -40^oC to 85^oC (-40^oF to 185^oF) Color
Silver Enclosure Type
Zinc-Plated Casing Included in Package
10 - SFP transceivers Item Dimension (L inchxW inchxH inch)
8 x 5 x 2

Weight
1.00 lb

Warranty Information
Lifetime Warranty
