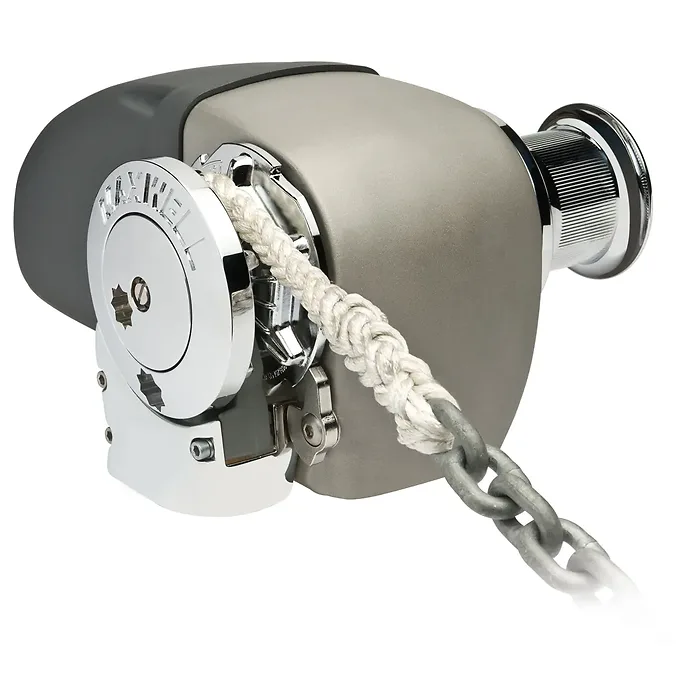

HRC 10-8 Horizontal Windlass for 5/16" Chain and 5/8" Rope

Designed for boats up to 45 feet, the HRC 10-8 Horizontal Series windlasses build upon Maxwell's legacy of fully automatic rope and chain anchor winches.

Kit Includes:

• Windlass
• On/Off Breaker Panel
• Reversing Solenoid
• Up/Down Panel Switch
• Clutch Release Handle

• Fully automatic operation for rope/chain or all chain anchoring
• Retrieves and deploys 8mm (5/16") chain and 16mm (5/8") three strand or 8-brait (plait) rope effortlessly
• Patented chain wheel accommodates any 5/16" marine grade chain spliced to 5/8" rope
• Two-part watertight case enhances space efficiency and protects motor and drive
• Anodized aluminum case for durability
• Easy maintenance with a removable composite motor cover
• Quick installation with a simple bolt down design
• Stainless steel pressure arm for maximum control over the rode
• Exclusive Wave Design chainwheel for enhanced rope and chain handling
• High quality stainless steel chainwheels
• Effective with all-chain rodes for enhanced security
• Integral chain pipe with a large hawse pipe throat for easy rode entry
• Cone type clutch/brake mechanism allows for free fall anchoring
• Sealed oil bath and marine-grade gearbox for high-efficiency output drive
• Includes a 3-Year Limited Warranty
