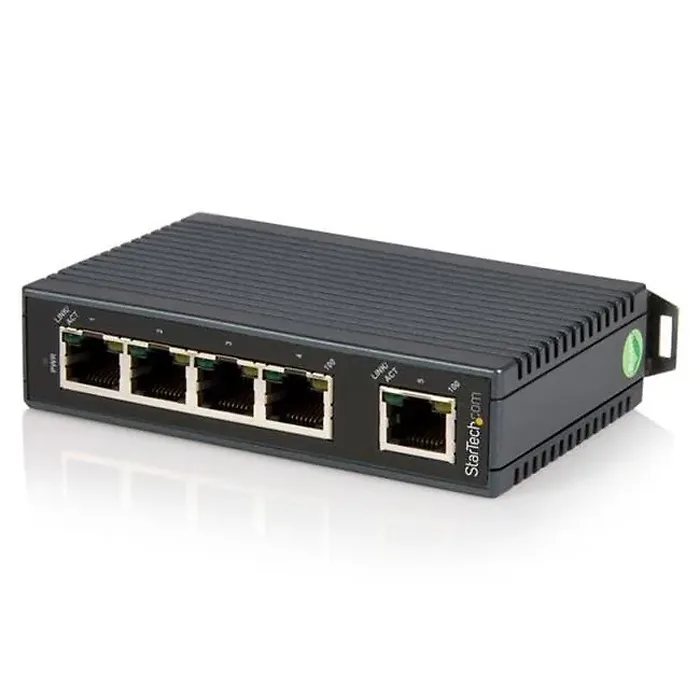

StarTech.com 5 Port Industrial Ethernet Switch - DIN Rail Mountable - 2 Layer Supported - Rail-mountable - 2 Year Limited Warranty

5Pt Industrial Ethernet Switch - Expand your network connectivity with this rugged unmanaged network switch - Fast 10/100Mbps Switch - DIN rail mountable with built-in bracket - Robust IP30-rated housing - Wide range 12-48V DC terminal block input - IEEE 802.3az Energy-Efficient Ethernet - Wider range of operating temperatures and ideal for industrial environments - Store-and-forward switching mechanism - Supports IEEE 802.3x flow control and back pressure.
Hardware
Industry Standards:
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
IEEE 802.3az (Energy-Efficient Ethernet)
IEEE 802.1P Quality of Service (QoS)

Interface:RJ45 (10/100 Ethernet)
Ports:5 Regulatory Approvals:
EN61000-6-2
EN61000-6-4
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock) Performance
Auto MDIX:Yes
Auto-Negotiation:Yes
Buffer Size:56 KB
Compatible Networks:10/100 Mbps
Flow Control:IEEE 802.3x Full-Duplex
Full Duplex Support:Yes
Jumbo Frame Support:No
Maximum Cable Length:328 ft (100 m)
Maximum Data Transfer Rate:200 Mbps (Full-Duplex)
MTBF:1,179,133 Hours

Surge Protection:
ESD: EN61000-4-2
Surge: EN61000-4-5

Switching Architecture:Store-and-Forward Connector(s)
External Ports:
5 - RJ-45 Female
1 - Terminal Block (3 Wire)

Software
OS Compatibility:OS Independent No additional drivers or software required

Color
Black

Enclosure Type
Plastic Indicators
LED Indicators:1 - Power
5 - Link/Activity
5 - Activity (100 Mbps)

Power
Input Voltage:12 - 48 DC
Power Consumption:2.12W Max
Power Source:Terminal Block Included in Package
1 - 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket)
1 - Terminal Block
1 - Instruction Manual CD Item Dimension (L"xW"xH"):
7.72 x 6.97 x 3.11

Weight:
1.01 lb

Warranty Information:
2 Year Warranty
