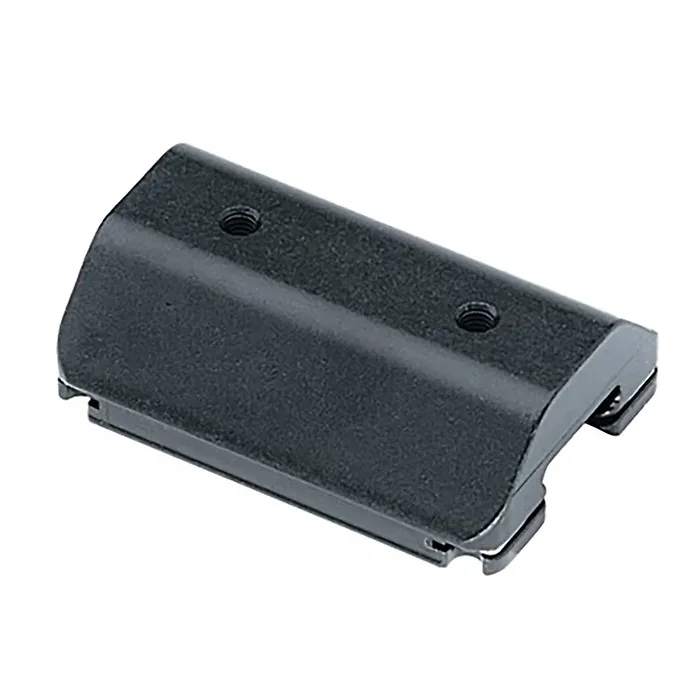

13mm High-Load Trolley with 2X M4 Tapped Holes

This trolley features recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for moving loads and equipment, hoisting, and moving stage equipment, and architectural solutions.

Features:

• High-load trolley with two M4-tapped holes on top
• Torlon® ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail
• Retaining clips keep ball bearings captive when the trolleys are removed for maintenance

Specifications:

• Length (mm): 56 mm
• Length (in): 2-3/16 in
• Width (mm): 40 mm
• Width (in): 1-9/16 in
• Weight (g): 57 g
• Maximum Rated Load (kN): 1.4 kN
• Height (mm): 19 mm
• Height (in): 3/4 in
• Weight (oz): 2.01 oz
• Breaking Load (kN): 6.7 kN

Product Tags

Harken 13mm High-Load Trolley w/2X M4 Tapped Holes
