General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:JD118BST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

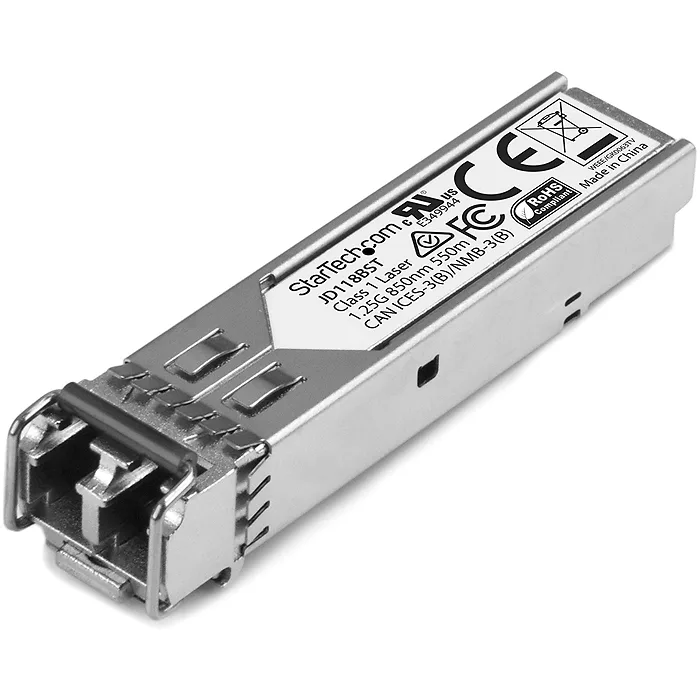

Product Name:HP JD118B Compatible SFP Transceiver Module - 1000BASE-SX
Marketing Information:The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Packaged Quantity:1
Product Type:SFP (mini-GBIC)

Technical Information

---

Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports

---

Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 1000Base-SX Network

Media & Performance

---

Media Type Supported:Optical Fiber
Fiber Mode Supported:Multi-mode
Ethernet Technology:Gigabit Ethernet
Network Technology:1000Base-SX

Physical Characteristics

---

Form Factor:

• Hot-pluggable
• Hot-swappable

Height:0.5"
Width:0.5"
Depth:2.2"
Weight (Approximate):0.04 lb

Miscellaneous

---

Compatibility:MSA Compliant

HPE Switches:

• 5900
• 12500
• 5500
• 5820
• 5120

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• REACH
• WEEE

Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
