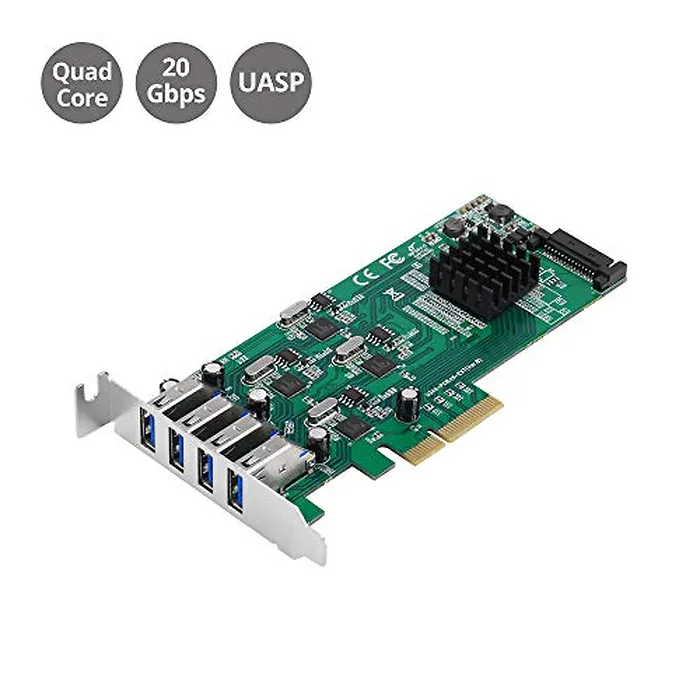

4Port USB 3.0 PCIe Quad Core. Adds four independent external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCI Express (PCIe) enabled desktop computer.
Chipset: Renesas uPD720202
Compliant with USB 3.0 Specification
Bus connector: PCI Express 4x
Version: PCI Express 2.0
USB data transfer rate: Up to 5Gbps for each port
Total USB bandwidth: 20Gbps
USB power output: Up to 900mA for each port
Product
Color: Green
Connectors
4x 9-pin USB 3.0 Type A, Female
1x 15-pin SATA power connector
Note: SATA power connector required
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Low profile desktop PC with one available PCI Express (PCIe) x4 slot
SATA power connection is required
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
Windows Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package Contents
4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
Driver CD
Quick Start Guide
Item Dimension ( L inchxW inchxH inch)
6 x 1 x 4 Weight
1.0 lb Warranty Information
2 years
