CPU Support : Intel Core i3 i3-530 i3-540, Core i5 i5-650, i5-650, i5-660, i5-661 i5-670 I5-750 Xeon Processor 3400 Series Core i7 Processors, I7-870 I7-860 Solution : 2U and Up Server
Material : Copper Base with Aluminum Stacked Fin Fan Dimension: 60 x 60 x 25 mm Speed : At Duty Cycle 020%: 1400 RPM At Duty Cycle 50%: 3500 RPM At Duty Cycle 100%: 7000 RPM Bearing : 2 Ball Bearing
Rated Voltage : 12 V Power : At Duty Cycle 020%: 0.6 W At Duty Cycle 50%: 1.20 W At Duty Cycle 100%: 5.4 W Air Flow: At Duty Cycle 020%: 7.405 CFM At Duty Cycle 50%: 18.517 CFM At Duty Cycle 100%: 38.283 CFM Noise Level : At Duty Cycle 020%: 20.8 dBA At Duty Cycle 50%: 35.9 dBA At Duty Cycle 100%: 48.1 dBA Air Pressure : At Duty Cycle 020%: 0.574mm-H2O At Duty Cycle 50%: 3.586mm-H2O At Duty Cycle 100%: 13.552mm-H2O Lead Wire Pin : Out Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) Item Dimension (L"xW"xH"): 3.5 x 3.43 x 2.52
Weight : 1.25 lb
Warranty Information : 1 Year
Other people marked this product with these tags:

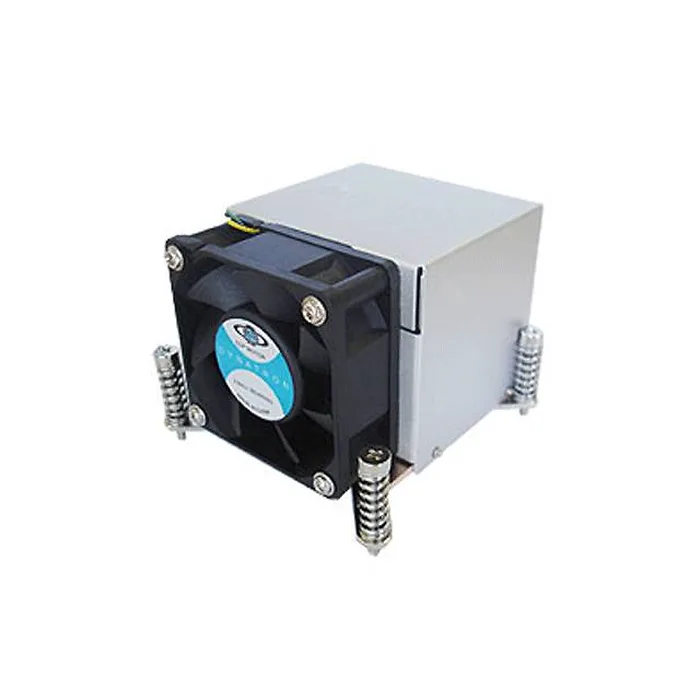

Dynatron K650 2U&Up Server CPU Fan For Intel LGA1155/1156
