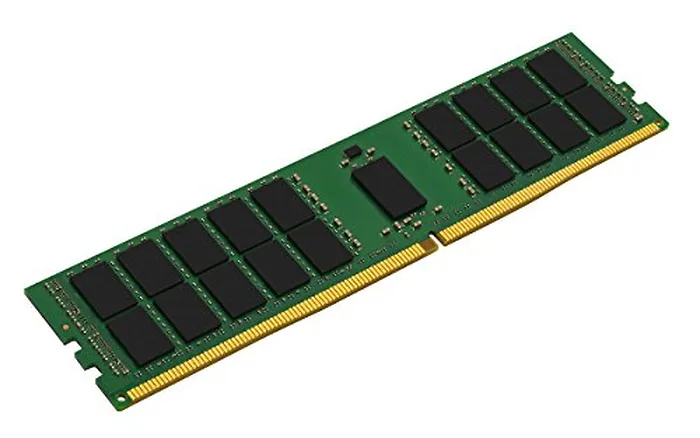

16GB DDR4 CL22 DIMM 2RX8 HYNIX D RAMBUS
CL(IDD)
22 cycles Row Cycle Time (tRCmin)
45.75ns(min.) Refresh to Active/Refresh
Command Time (tRFCmin)
350ns(min.) Row Active Time (tRASmin)
32ns(min.) Maximum Operating Power
IDD Specifications
IDD
Symbol 3200 Units
IDD0 1019 mA
IDD0A 1019 mA
IDD1 1125 mA
IDD1A 1151 mA
IDD2N 960 mA
IDD2NA 961 mA
IDD2NT 1052 mA
IDD2NL 826 mA
IDD2NG 957 mA
IDD2ND 938 mA
IDD2NP 970 mA
IDD2P 626 mA
IDD2Q 893 mA
IDD3N 992 mA
IDD3NA 992 mA
IDD3P 693 mA
IDD4R 1787 mA
IDD4RA 1814 mA
IDD4RB 1803 mA
IDD4W 1775 mA
IDD4WA 1823 mA
IDD4WB 1717 mA
IDD4WC 1767 mA
IDD4WP 1982 mA
IDD5B 2475 mA
IDD5F2 1982 mA
IDD5F4 1830 mA
IDD6N 322 mA
IDD6E 451 mA
IDD6R 203 mA
IDD6A 451 mA
IDD7 1930 mA
IDD8 157 mA
IPP
Symbol 3200 Units
IPP0 56 mA
IPP1 60 mA
IPP2N 41 mA
IPP2P 33 mA
IPP3N 197 mA
IPP3P 193 mA
IPP4R 149 mA
IPP4W 147 mA
IPP5B 507 mA
IPP5F2 344 mA
IPP5F4 285 mA
IPP6N 73 mA
IPP6E 104 mA
IPP6R 50 mA
IPP6A 102 mA
IPP7 161 mA
IPP8 35 mA UL Rating
94 V - 0 Operating Temperature
0^oC to +85^oC Storage Temperature
-55^oC to +100^oC Module Assembly
DRAM:
HYNIX (D-DIE)
RCD:
Rambus Item Dimension (L inchxW inchxH inch)
7 x 3 x 1
Weight
1.00lb
Warranty Information
Lifetime Warranty
