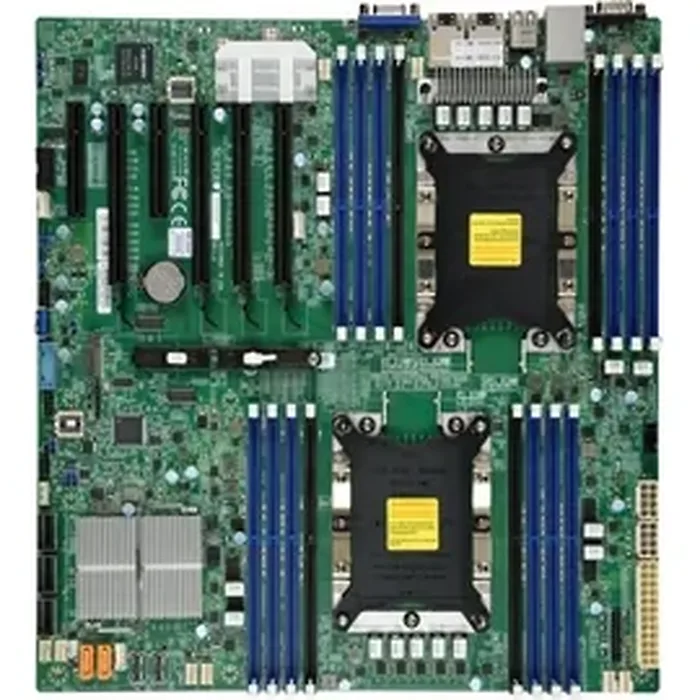

DP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.
Form Factor
E-ATX CPU
Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Cores / Cache
Up to 28 cores Memory Capacity
Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes
RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) Chipset
Intel C622 SATA
Intel C622 controller for 14 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI
ASPEED AST2500 Network Controllers
Dual LAN with 10GBase-T with Intel X557 Graphics
Aspeed AST2500 BMC USB
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) Video Output
1 VGA port(s) Serial Port / Header
2 COM Ports (1 rear, 1 header(s)) TPM
1 TPM Header PCI-E
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8 M.2
Interface: PCIe 3.0 x4
Form Factor: 2260, 2280, 22110 BIOS Type
AMI UEFI
