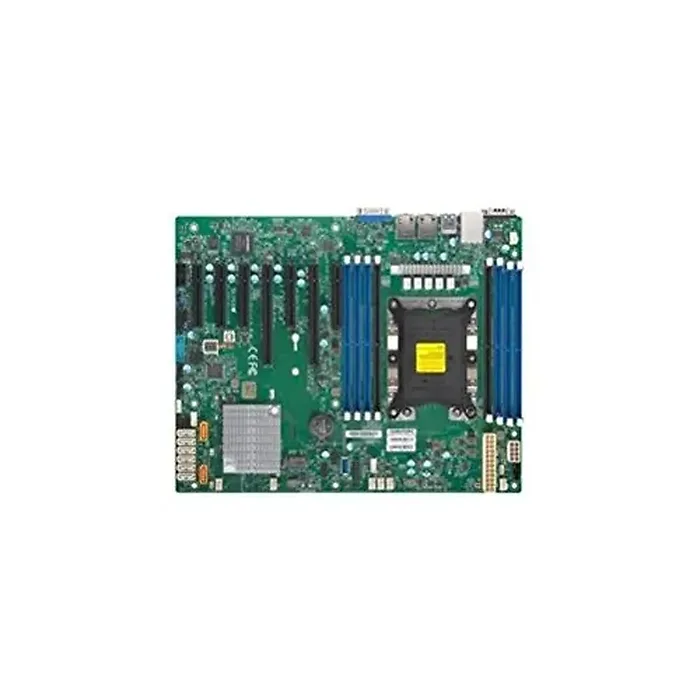

Xeon Motherboard

Form Factor
ATX CPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 165W Cores / Cache
Up to 28 cores Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 1TB ECC 3DS LRDIMM
Up to 512GB ECC LRDIMM
Up to 256GB ECC RDIMM Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors Chipset
Intel C621 SATA
Intel C621 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI
ASPEED AST2500 Network Controllers
Dual LAN with 1GbE with Intel I210 Graphics
Aspeed AST2500 BMC USB
8 USB 2.0 ports (2 rear + 6 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) Video Output
1 VGA port(s) Serial Port / Header
2 COM Ports (1 rear, 1 header(s)) TPM
TPM Header PCI-E
2 PCI-E 3.0 x8 (in x16 slot),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) M.2
Interface: PCIe 3.0 x4 and SATA
Form Factor: 2280, 22110 BIOS Type
AMI UEFI
