Power A MM21T - Electronic Control Package

- Dual Engine/Single Station - Mechanical Throttle/Mechanical Shift with Trim

Power A Mark II™ Electronics Control Systems

• Private Protocol CAN bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication with electronic engines (SAE J 1939 or NMEA 2000)
• Plug'N Play connectivity
• Automatic engine synchronization
• Dock Assist
• Fully programmable shift delays

MM21T Package Includes:

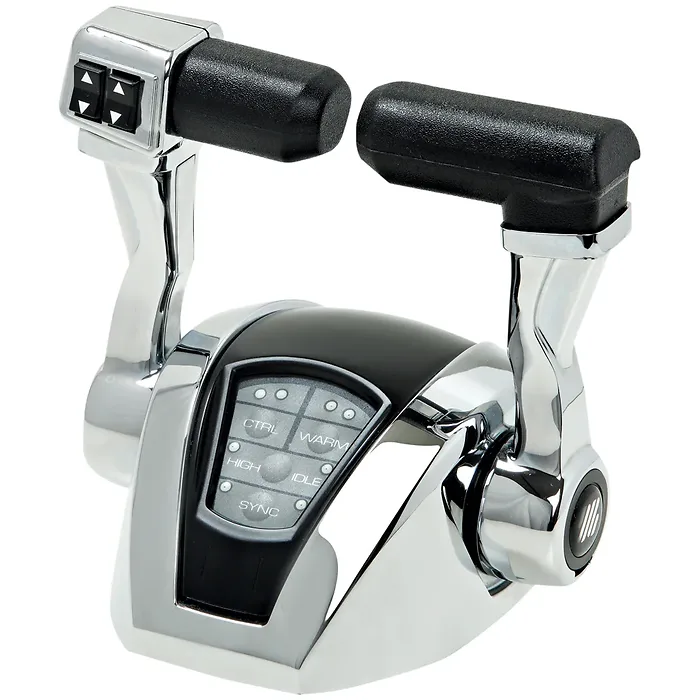

• 42012V - (1) PA2-B2T - Dual Lever Control with Trim
• 42017F - (1) PA2-CU - Control Unit with LED Diagnostic & Programming Screen
• 42027J - (4) PA2-MA - Electro Mechanical Actuator for Shift and/or Throttle
• 42028L - (1) PA2-NT - Network Terminator
• 42053K - (1) M-P3 - Main Power Supply Cable 9.8'
• 71021K - (2) CAN-10 - Network Connection Cable 33'
• 73639T - (3) CAN-1 - Network Connection Cable 3'
• 42026G - (1) PA2-PU - Power Supply Unit for 12V Systems
• 42056S - (4) M-PE1 - Power Extension Cable 3.3'

• Supports dual engine control from a single station
• Mechanical throttle and shift functionality
• Advanced connectivity options including NMEA 2000
• Customizable shift delays for user preference
• Built-in dock assist feature for improved handling
