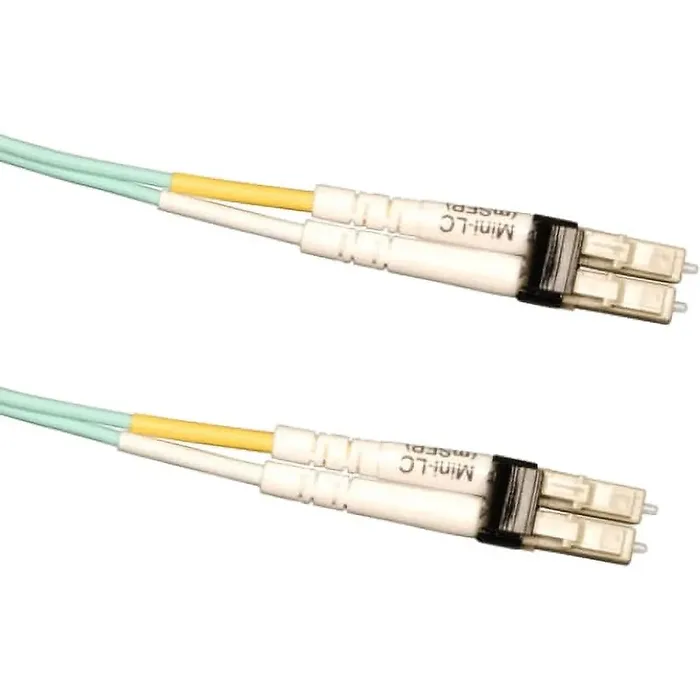

2M (6-ft.) 10Gb Duplex MMF 50/125 OM3 LSZH Patch Cable ( Mini-LC to Mini-LC )

• UPC Code: 037332165817
• Technology: Multimode
• Optical Mode: OM3
• Cable Jacket Color: Aqua
• Connector Color: White; Black; Beige
• Cable Jacket Material: LSZH
• Cable Jacket Rating: OFNR
• Clad Diameter (microns): 125
• Core Diameter (microns): 50
• Number of Fibers: 2
• Cable Length (ft.): 6.6
• Cable Length (in.): 78.7
• Minimum Bend Radius: 20MM (Dynamic); 10MM (Static)
• Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
• Shipping Weight (lbs.): 0.05
• Operating Temperature Range: -4 to 140 ?F (-20 to 60 ?C)
• Storage Temperature Range: -4 to 140 ?F (-20 to 60 ?C)
• Operating Humidity Range: 5% to 85% RH, Non-Condensing
• Storage Humidity Range: 35% to 65% RH, Non-Condensing
• Network Compatibility: 1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps
• Attenuation @ 850NM: 3.0dB/Km
• Insertion Loss: ≤0.20dB
• Side A - Connector 1: MINI LC DUPLEX (MALE)
• Side B - Connector 1: MINI LC DUPLEX (MALE)
• Endface Polish: PC
• Product Compliance: RoHS; REACH
• Product Warranty Period (Worldwide): Lifetime limited warranty

Product Tags

Tripp Lite, Patch Cable, 10Gb, Duplex Multimode, 50/125, OM3 LSZH Fiber, Mini-LC/Mini-LC, Aqua, 6FT
