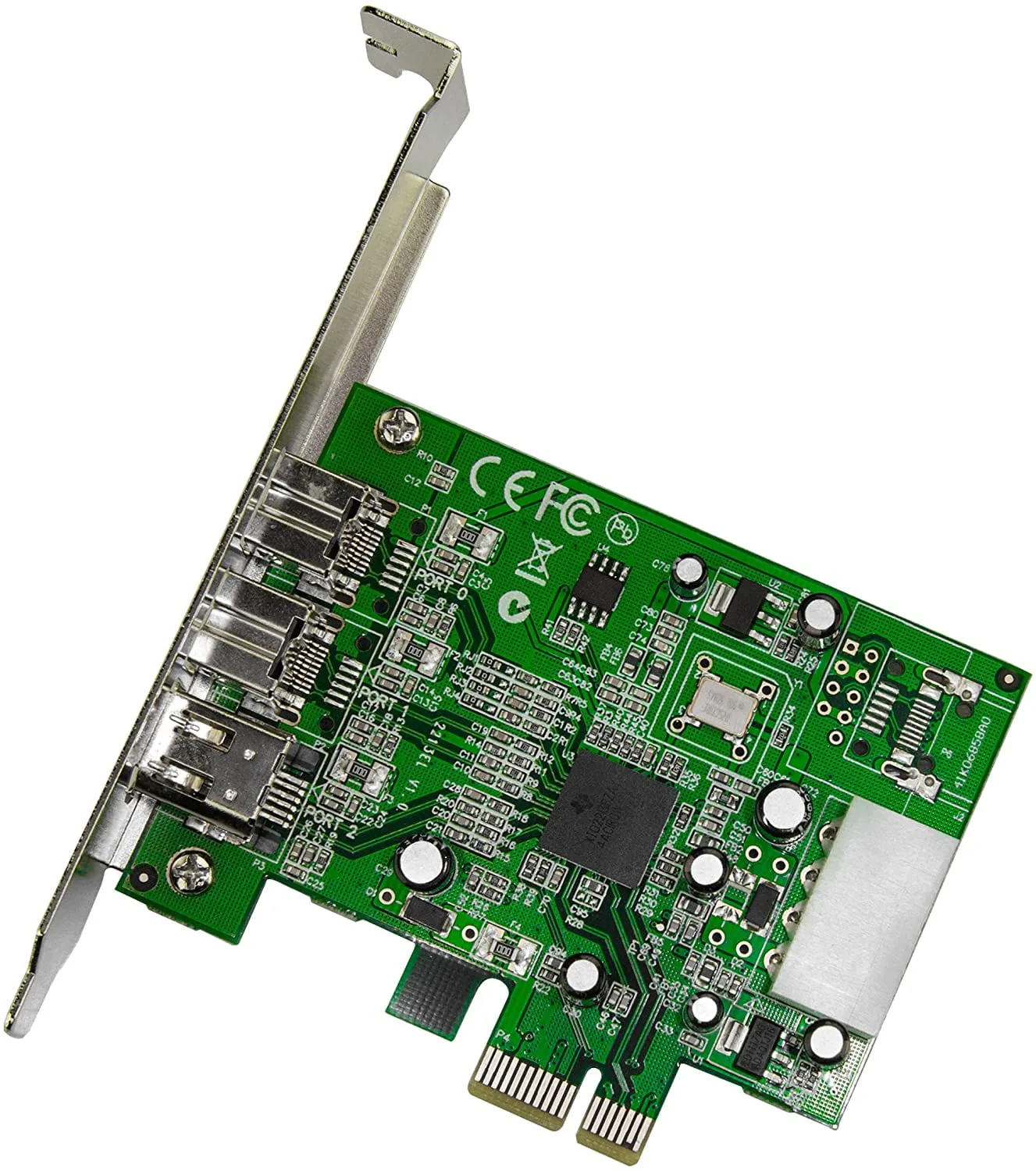

FIREWIRE ADAPTER - PLUG-IN CARD - PCI EXPRESS X1 - IEEE 1394 FIREWIRE;IEEE 1394B
Specifications Dimension H x W x D : 8.75 x 6.75 x 2 inch Regulatory approval(s): FCC Class B (DoC) and CE RoHS compliant Chipset: Texas Instruments TI XIO2213 Bus type: PCI Express x1 Port type: Two 9-pin and one 6-pin external FireWire ports Compliant with PCI Express Base Specification Revision 1.0a Supports IEEE P1394b and backwards compatible with 1394a-2000 and 1394-1995 standards Hot-swapping feature allows you to connect/disconnect devices without powering down the system Supports serial bus data transfer rates of 100, 200, 400 and 800 Mb/sec and supports up to 63 devices Onboard power connector to provide reliable power source System Requirements PCI Express enabled system with an available PCI Express slot Windows 2000 / XP (32-/64-bit) / Server 2003 and 2008 (32-/64-bit) / Vista (32-/64-bit) Mac OS X v10.4.x or later
